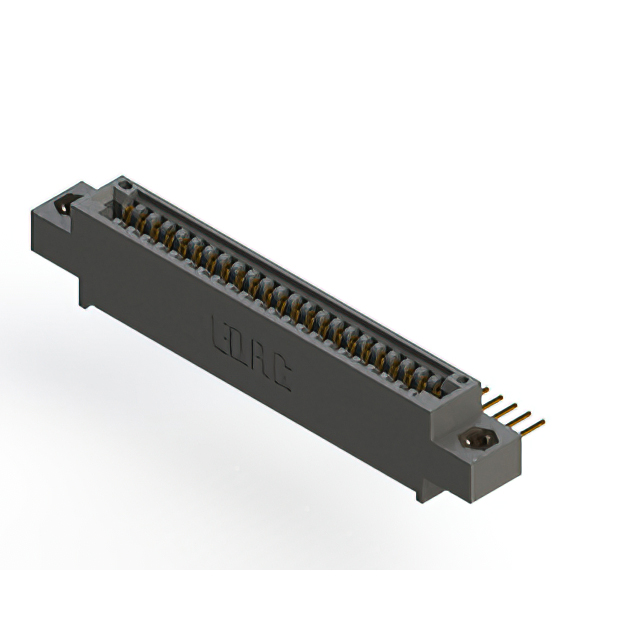

395-023-559-608

$11.46

Description：CONN EDGE SINGLE FML 23POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box

SKU:003221d90a17 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

395-023-559-608 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 23POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-023-559-608

Description：CONN EDGE SINGLE FML 23POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：23
Number of Positions：23
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-023-559-608

395-023-559-608

Edgeboard Connectors Overview

The EDAC Inc. 395-023-559-608 is a standard card edge connector featuring 23 positions with a 2.54 mm pitch. Designed for single-edge mating, it utilizes gold-plated contacts and accepts printed circuit boards with a nominal thickness of 1.57 mm. The component employs a vertical mounting style and solder pin termination to ensure reliable electrical connections in industrial applications.

Edgeboard Connectors Feature Summary

Gold-plated contact surfaces for enhanced conductivity
Vertical panel mount configuration
Single-row architecture for compact integration

Edgeboard Connectors Applications

Industrial control systems
Telecommunications equipment
Computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB dimensions before procurement. Confirm current availability status through authorized distributors as supply levels may fluctuate.

Edgeboard Connectors Selection Notes

Select this model when a 23-position interface with a 2.54 mm pitch is required. It is suitable for designs necessitating vertical board insertion and robust gold-contact reliability. Verify that the host system accommodates the specified single-edge form factor.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series is characterized by its 2.54 mm contact spacing and compatibility with 1.57 mm thick printed circuit boards, providing a standardized solution for edge-mounted interconnects.
