395-025-524-602

Edgeboard Connectors Overview

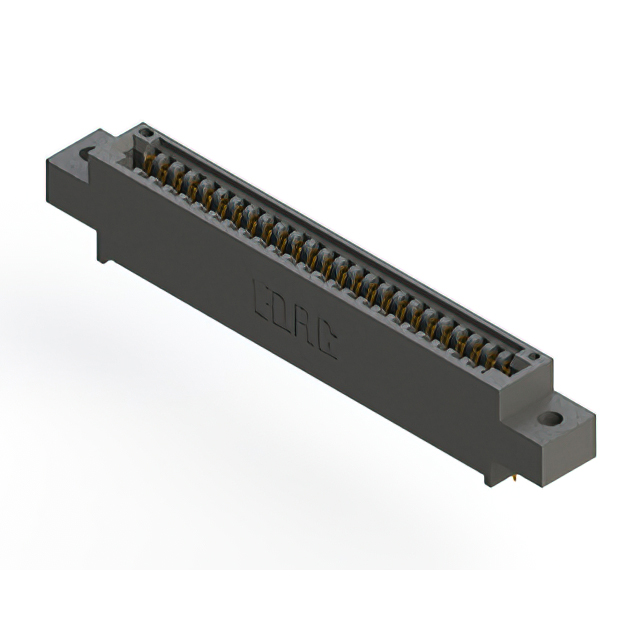

The EDAC Inc. 395-025-524-602 is a standard card edge connector from the 395 series, designed for vertical panel mounting. It features 25 positions with a 0.100-inch (2.54mm) pitch and utilizes gold-plated copper alloy contacts. The connector supports single-edge board configurations with a thickness of 1.57mm. Tail-type contacts are specified as 0.018 inches square (0.46mm), facilitating secure termination.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for stable integration
• Gold-plated contacts ensure reliable signal transmission
• Single-edge configuration compatible with standard PCBs

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment interface modules
• Automotive electronic circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific contact tail dimensions against your PCB layout requirements to ensure proper soldering compatibility. Confirm that the target printed circuit board thickness matches the 1.57mm specification for optimal mechanical retention. Ensure the single-edge mating requirement aligns with your system architecture before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when a vertical orientation and single-edge connection are required for 25-position applications. The 0.100-inch pitch suits general-purpose digital signals. Consider the gold plating for corrosion resistance in demanding environments. Verify that the panel-mount style fits the enclosure constraints of the final assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and mounting styles. The 395-025 variant specifically addresses the need for medium-density connections in vertical panel applications, providing a standardized solution within the broader product family.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 395 series connectors with matching 25-position counts and vertical mounting styles. Cross-reference pin-to-pin compatibility and physical envelope dimensions to ensure interchangeability without redesigning the host PCB or panel cutouts.
