Edgeboard Connectors Overview

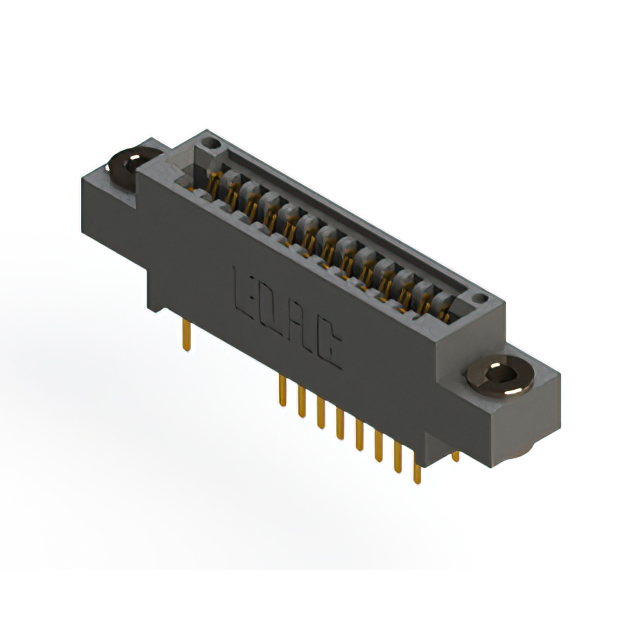

The EDAC Inc. 395-026-520-803 is a dual-edge card edge connector designed for vertical through-hole mounting. It features 26 positions with a 0.100-inch (2.54mm) pitch across two rows. The connector utilizes female cantilever contacts with gold plating and a black thermoplastic polyester insulator. It accommodates board thicknesses between 0.054 and 0.070 inches, operates within -40°C to 105°C, and includes top-mounting flanges with 0.128-inch diameter unthreaded openings.

Edgeboard Connectors Feature Summary

• Dual-edge configuration with female cantilever contacts for secure board insertion
• Gold-plated terminals ensure reliable signal transmission and corrosion resistance
• Thermoplastic polyester insulation provides structural stability and thermal endurance
• Top-mounting flanges facilitate panel or chassis installation without threading

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Automotive electronic module connections
• Consumer appliance circuit board interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, contact material, and termination style. Ensure compatibility with target PCB thickness and mounting constraints before procurement. Cross-reference RoHS compliance status with current regulatory requirements for the intended market.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, non-specified card edge interface is required for vertical mounting. Confirm that the 0.100-inch pitch aligns with the mating board layout. Evaluate the operating temperature range and mechanical durability against environmental stressors in the deployment scenario.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and configurations for diverse interconnect needs. The 395-026 variant specifically addresses applications requiring moderate density connections with robust mechanical retention.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalents. Generic cross-references may not match critical dimensions or contact specifications.
