395-028-520-102

Edgeboard Connectors Overview

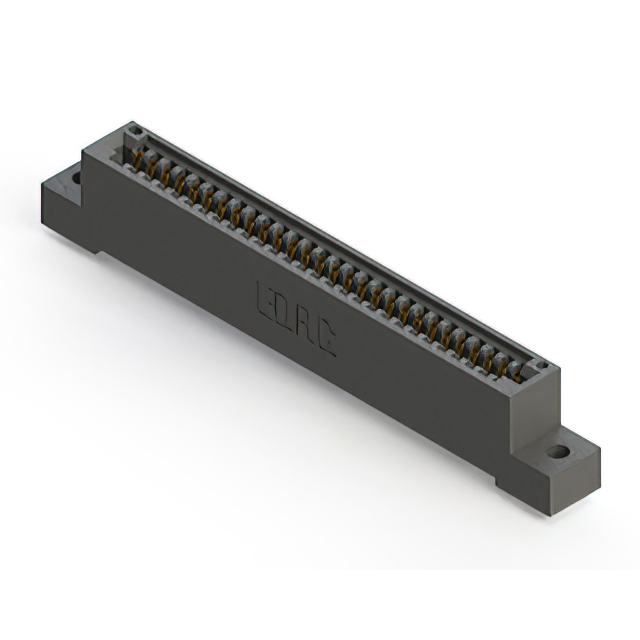

The EDAC Inc. 395-028-520-102 is a standard card edge connector from the 395 series, designed for single-row female connections. It features 28 positions with a 0.100 inch (2.54 mm) pitch. The connector utilizes gold-plated contacts and a black insulator body. It supports solder termination and includes a guide set for alignment. The component is rated for vertical installation and complies with RoHS standards.

Edgeboard Connectors Feature Summary

• Single row female configuration for card edge insertion
• Gold-plated contact surfaces for reliable signal transmission
• Integrated guide set ensures precise board alignment
• Solder terminal design facilitates secure PCB mounting

Edgeboard Connectors Applications

• Industrial control systems requiring modular interface connections
• Telecommunications equipment utilizing standard card edge modules
• Automotive electronics assemblies needing robust signal interfaces
• Test and measurement devices employing plug-in circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and insulation color. Ensure the selected variant matches the required guide set configuration for your assembly tooling. Confirm RoHS compliance status through the manufacturer's latest documentation before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, 28-position interface is required with a standard 2.54 mm pitch. Consider the vertical mounting style and solder termination method for PCB layout compatibility. Evaluate the need for integrated guides to simplify assembly processes in high-volume production environments.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic applications. The 395-028-520-102 specifically addresses needs for compact, single-row connectivity solutions in industrial and commercial hardware designs.

Edgeboard Connectors Replacement Considerations

Check for functional equivalents within the EDAC 395 series that match the 28-position count and 2.54 mm pitch. Verify mechanical dimensions and pinout configurations against existing designs to ensure direct interchangeability without retooling.
