Edgeboard Connectors Overview

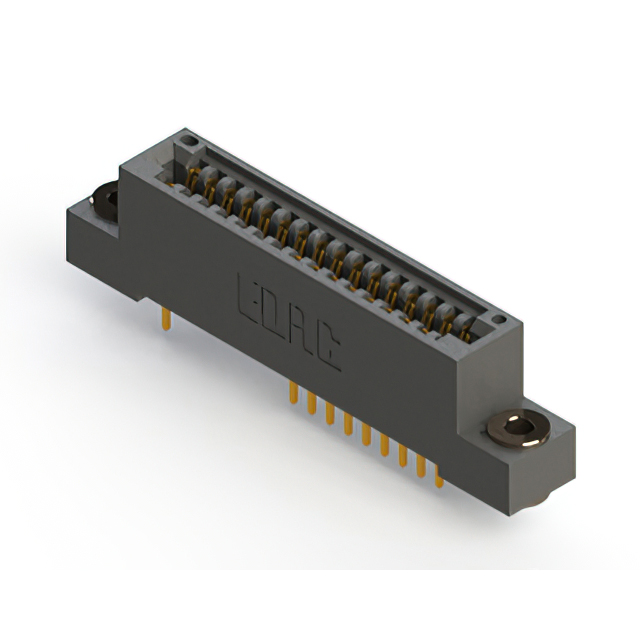

The EDAC Inc. 395-032-521-203 is a standard card edge connector designed for vertical panel mounting. It features 32 positions with a 0.100 inch (2.54mm) pitch and utilizes gold-plated contacts. The component supports dual-edge card insertion and operates within a temperature range of -40°C to 105°C. Insulation is constructed from high-temperature thermoplastic materials rated UL 94V-0. The connector employs wire wrap termination methods and includes flange features for secure installation.

Edgeboard Connectors Feature Summary

• Dual-edge contact configuration for robust signal transmission
• Gold-plated terminals ensure reliable conductivity and corrosion resistance
• Vertical panel mount design with integrated flanges for stability

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Telecommunications equipment board connections
• Automotive electronic module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, termination style, and insulation material properties. Ensure compatibility with target PCB thickness and mating card dimensions before procurement. Cross-reference RoHS compliance status with current regulatory requirements for the intended market.

Edgeboard Connectors Selection Notes

Select this component when a vertical, dual-edge card interface is required. Confirm that the 0.100 inch pitch aligns with the system's layout constraints. Verify that wire wrap termination is compatible with the assembly process. Ensure the operating temperature range meets environmental demands.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various configurations for different row counts and termination styles. The 395 series is widely used in applications requiring reliable, high-density connections between circuit boards and backplanes or chassis-mounted headers.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalents. Generic cross-references may not match critical parameters such as flange specifications or termination types. Verify mechanical fit and electrical ratings before substituting.
