395-033-540-108

Edgeboard Connectors Overview

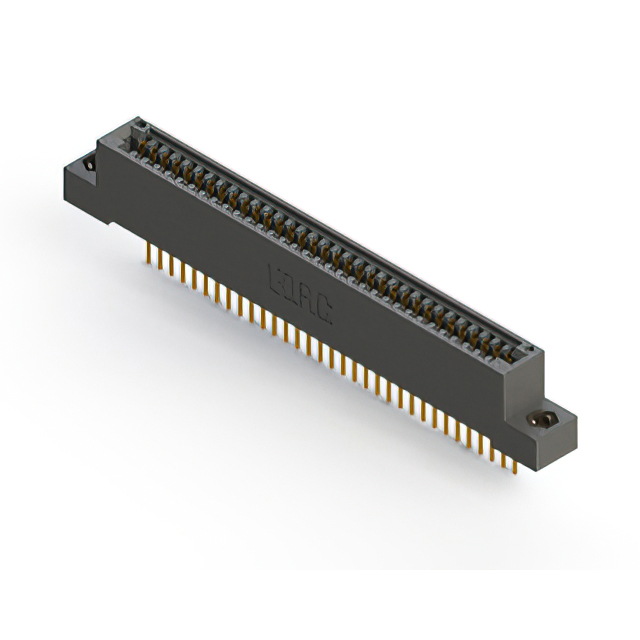

The EDAC Inc. 395-033-540-108 is a standard card edge connector designed for single-sided board applications. It features 33 positions with a 0.100-inch (2.54mm) pitch and accepts boards ranging from 0.054 to 0.070 inches in thickness. The connector utilizes female, cantilever contacts with gold plating for reliable signal transmission. Constructed with a thermoplastic polyester insulator, it supports through-hole termination and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-sided female contact configuration for standard card edge insertion
• Gold-plated cantilever contacts ensure durable electrical connectivity
• Thermoplastic polyester insulation provides structural stability
• Through-hole mounting facilitates secure PCB integration

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment modules
• Automotive electronic circuit boards
• Consumer electronics internal connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm mechanical dimensions and termination style. Ensure compatibility with the target printed circuit board thickness and pin count requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 33-position interface is required for vertical or horizontal board-to-board connections. Confirm that the operating environment falls within the specified thermal limits and that the gold contact finish meets the application's corrosion resistance needs.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination options, providing a scalable solution for diverse electronic assembly requirements while maintaining consistent mechanical and electrical performance standards across the product line.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains identical pitch, position count, and termination type to guarantee mechanical fit and electrical continuity without redesigning the host circuit board.
