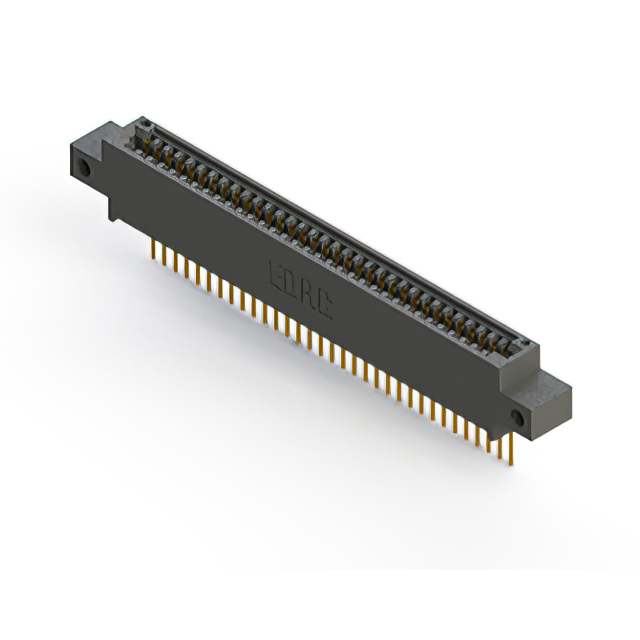

395-033-542-612 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 33POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 395-033-542-612
- Description：CONN EDGE SINGLE FML 33POS 0.100
- Series：395
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：33
- Number of Positions：33
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 395-033-542-612
Edgeboard Connectors Overview
The EDAC Inc. 395-033-542-612 is a single-row card edge connector featuring 33 female positions with a 0.100-inch (2.54mm) pitch. It utilizes wire wrap termination and has a black thermoplastic polyester insulator. The contacts are made of copper alloy with gold plating. Designed for vertical mounting, it accommodates board thicknesses between 0.054 and 0.070 inches.
Edgeboard Connectors Feature Summary
- Single-sided female contact configuration
- Wire wrap termination method
- Gold-plated copper alloy contacts
- Thermoplastic polyester insulation
Edgeboard Connectors Applications
- Vertical circuit board interconnection
- Edgeboard connector systems
- General electronic assembly
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to ensure correct termination style and flange options. Confirm that the required board thickness falls within the specified operational range. Check RoHS compliance status if environmental regulations apply to the final assembly. Ensure the supplier provides original manufacturer packaging to maintain component integrity.
Edgeboard Connectors Selection Notes
Select this model when a single-row, 33-position interface is required with wire wrap capabilities. The 0.100-inch pitch suits standard spacing requirements. Verify that the vertical mounting orientation aligns with the mechanical design constraints. Consider the gold plating for corrosion resistance in the intended operating environment.
Edgeboard Connectors Part Context
This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination styles. This specific part number represents a 33-position variant designed for reliable signal transmission in vertical board applications.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 395 series parts for alternative position counts or termination types. Verify mechanical compatibility before substituting with generic equivalents. No direct public substitute part numbers are confirmed.
