Edgeboard Connectors Overview

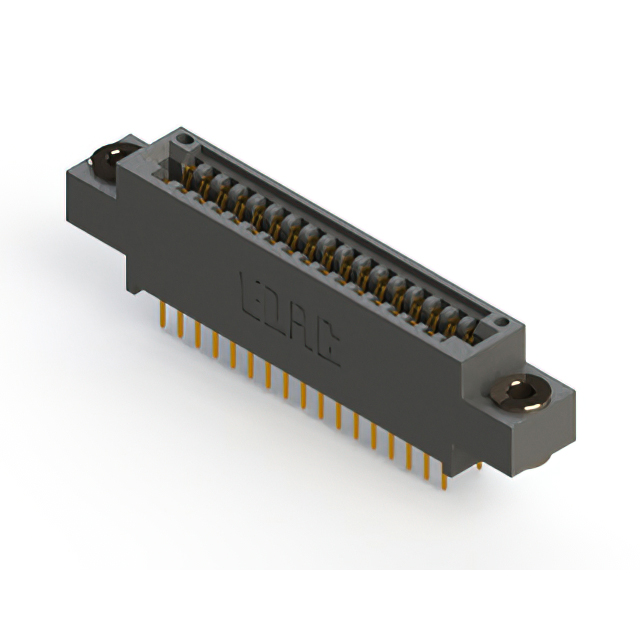

The EDAC Inc. 395-034-524-803 is a standard card edge connector designed for vertical panel mounting applications. It features a dual female configuration with 34 positions arranged in two rows. The component utilizes a 0.100-inch (2.54mm) pitch and accepts board thicknesses ranging from 0.054 to 0.070 inches. Contact surfaces are gold-plated, and the insulator is black thermoplastic polyester rated UL 94V-0. The operating temperature range spans from -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for double-sided card edge insertion
• Vertical panel mount design with integrated flange mounting options
• Gold-plated contacts ensuring reliable signal transmission
• High-temperature resistant thermoplastic polyester insulation

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Automotive electronic module connections
• Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, termination style, and flange configuration. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference RoHS compliance status with latest regulatory updates. Confirm availability through authorized distributors as supply chain conditions may vary.

Edgeboard Connectors Selection Notes

Select this connector when a vertical, dual-row interface is required for double-sided circuit boards. Verify that the 2.54mm pitch aligns with existing layout constraints. Consider the panel mount requirement versus board mount alternatives. Evaluate thermal performance needs against the specified operating temperature range. Confirm mechanical stability requirements match the flange mounting capabilities provided by this series.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination styles. The 395-034 variant specifically addresses mid-range density requirements. It serves as a reliable interconnection solution within broader EDAC connector ecosystems designed for robust industrial and commercial electronics applications.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 395 series parts with matching 34-position dual-row configurations. Verify identical 2.54mm pitch and vertical mounting orientation. Ensure equivalent gold plating thickness and material specifications. Check dimensional drawings for mechanical fit compatibility with existing enclosures.
