395-034-555-208

Edgeboard Connectors Overview

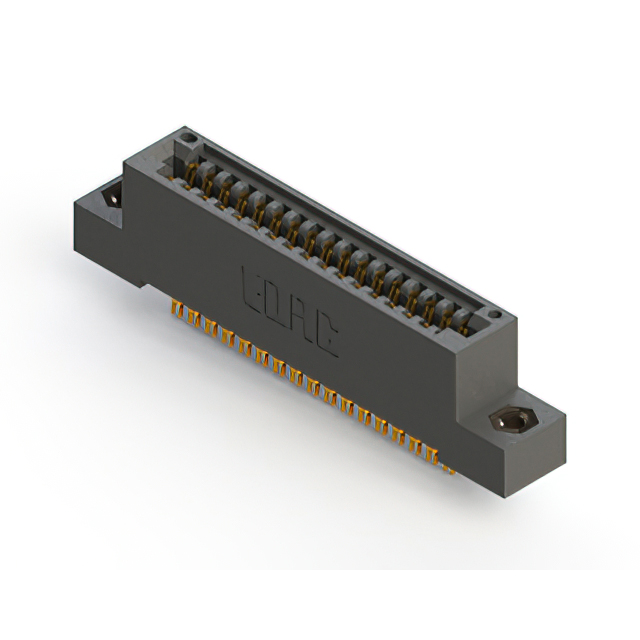

The EDAC Inc. 395-034-555-208 is a standard card edge connector designed for vertical mounting applications. It features 34 positions arranged in two rows with a 0.100 inch (2.54mm) pitch. The connector utilizes female contacts with gold plating and employs a tail pin clip termination method. It is constructed with a black thermoplastic polyester insulator and supports PCB thicknesses ranging from 0.054 to 0.070 inches.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for non-specified card types
• Tail pin clip termination mechanism for secure board connection
• Gold-plated contacts ensuring reliable signal transmission
• Vertical mounting orientation with flange support

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment interface modules
• Automotive electronic subsystem connections
• General-purpose circuit board expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact physical dimensions and termination style. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status through current manufacturer datasheets as regulatory requirements may evolve over time.

Edgeboard Connectors Selection Notes

Select this component when dual-sided card edge insertion is required with vertical orientation. The 34-position count suits moderate density applications. Verify that the tail pin clip termination aligns with assembly processes, as it differs from solder or wire-wrap methods. Check flange hole dimensions for panel mounting compatibility.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination options. The 395-034 variant specifically addresses mid-range connectivity needs within industrial and commercial electronics sectors, providing a balance between contact density and mechanical stability.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC 395-034-555-208 equivalents only. Verify identical pitch, row count, and termination type before substitution. Generic card edge connectors may lack compatible flange specifications.
