395-038-558-212

Edgeboard Connectors Overview

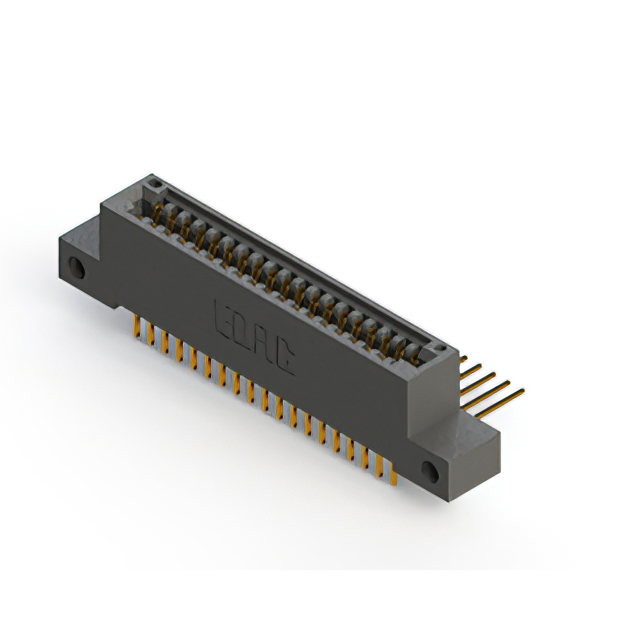

The EDAC Inc. 395-038-558-212 is a standard card edge connector designed for through-hole mounting. It features a dual female configuration with 38 positions arranged in two rows. The connector utilizes a 0.100-inch (2.54mm) pitch and gold-plated copper alloy contacts to ensure reliable signal transmission. This component is engineered for secure board-to-board or backplane connections, providing robust mechanical stability and electrical performance in industrial applications.

Edgeboard Connectors Feature Summary

• Dual female contact configuration supports simultaneous connection requirements
• Gold-plated copper alloy contacts provide corrosion resistance and low contact resistance
• Through-hole right-angle mounting ensures stable PCB integration

Edgeboard Connectors Applications

• Industrial control systems requiring reliable signal interconnects
• Communication equipment backplane assemblies
• Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffixes to ensure correct orientation and mounting style. Confirm that the target application requires a dual-row female connector with a 0.100-inch pitch. Check for RoHS compliance status if environmental regulations apply to the final assembly. Ensure the manufacturing source is authorized to guarantee product authenticity.

Edgeboard Connectors Selection Notes

Select this connector when a dual-sided female interface is required for edge cards. The 38-position count must match the specific circuit trace layout. Verify that the PCB thickness accommodates the connector's retention mechanism. Consider the right-angle form factor for space-constrained vertical mounting scenarios.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and row configurations to suit different density requirements. The 395 series is widely used in general-purpose electronic assemblies where reliable interconnection is critical.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include variants with different position counts such as 395-032-558-212 or 395-046-558-212. Cross-referencing with other manufacturers requires matching the 0.100-inch pitch and dual female specifications.
