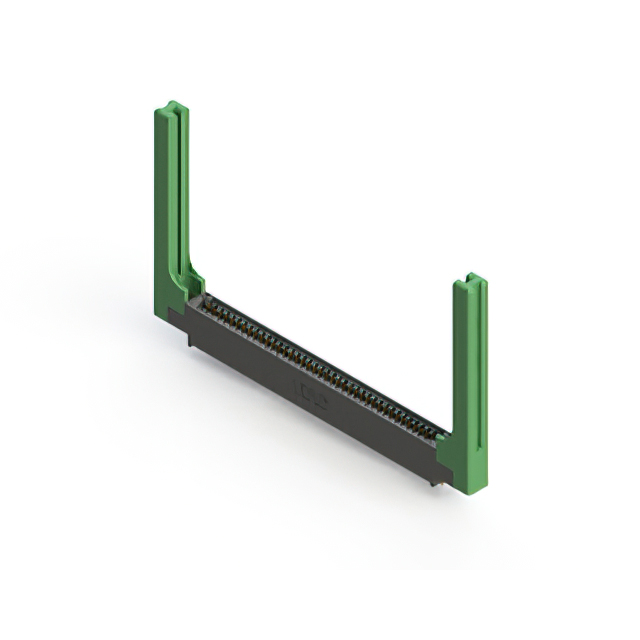

395-040-540-658 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 40POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 395-040-540-658
- Description：CONN EDGE SINGLE FML 40POS 0.100
- Series：395
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：40
- Number of Positions：40
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：Card Guides
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 395-040-540-658
Edgeboard Connectors Overview
The EDAC Inc. 395-040-540-658 is a single-edge card edge connector featuring 40 positions with a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, it utilizes gold-plated contacts and a black thermoplastic polyester insulator. The component supports a card thickness range of 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.
Edgeboard Connectors Feature Summary
- Single-row configuration for standard card edge applications
- Gold contact finish ensures reliable signal transmission
- Thermoplastic polyester insulation provides thermal stability
Edgeboard Connectors Applications
- Industrial control systems
- Telecommunications equipment
- Computing hardware interfaces
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and flange configurations. Ensure compatibility with target PCB layout dimensions and card edge specifications before procurement. Cross-reference manufacturer datasheets for any recent product change notifications or environmental compliance updates.
Edgeboard Connectors Selection Notes
Select this connector when a single-edge interface with 40 positions and 2.54mm spacing is required. Confirm that the mating card thickness falls within the specified 1.37mm to 1.78mm range. Evaluate thermal requirements against the -40°C to 105°C operating limit and ensure through-hole mounting fits the assembly process.
Edgeboard Connectors Part Context
This part belongs to the EDAC 395 series of standard card edge connectors. It is designed for general-purpose interconnect applications requiring robust mechanical connection and electrical reliability. The series offers various position counts and edge configurations to support diverse electronic module designs.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for verified alternatives. Generic equivalents may differ in flange features or contact material specifications.
