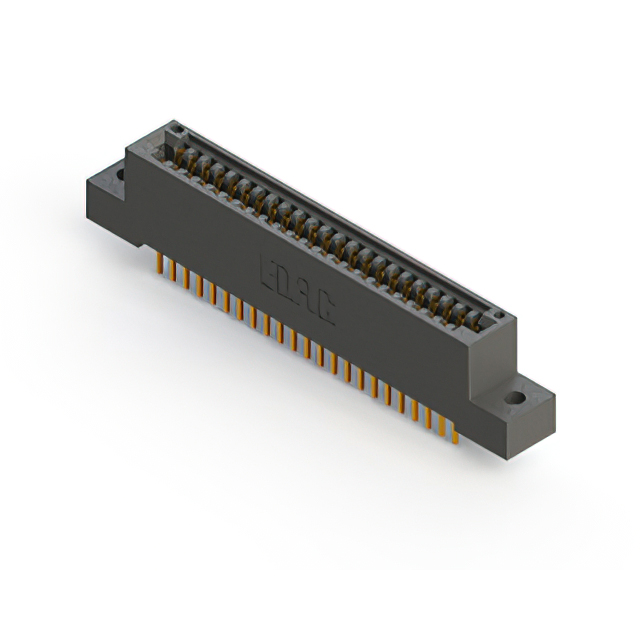

395-046-540-202 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 46POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 395-046-540-202
- Description：CONN EDGE DUAL FMALE 46POS 0.100
- Series：395
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：23
- Number of Positions：46
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 395-046-540-202
Edgeboard Connectors Overview
The EDAC Inc. 395-046-540-202 is a dual-edge female card edge connector with 46 positions and a 0.100-inch (2.54mm) pitch. It features gold-plated contacts, a black thermoplastic polyester insulator, and a 0.054 to 0.070-inch board thickness range. Designed for vertical through-hole mounting, it utilizes cantilever contacts and includes flanges with top-mount openings for secure installation.
Edgeboard Connectors Feature Summary
- Dual-edge female configuration for robust signal integrity
- Gold-plated cantilever contacts ensure reliable connectivity
- Thermoplastic polyester insulation provides thermal stability
- Vertical through-hole mounting with integrated flange support
Edgeboard Connectors Applications
- Industrial control systems requiring high-density interconnects
- Telecommunications equipment backplanes
- Automotive electronic modules
- Test and measurement instrumentation boards
Edgeboard Connectors Procurement Notes
Verify the complete part number including suffixes to ensure correct contact plating and flange specifications. Confirm RoHS compliance status and lead times directly with authorized distributors. Cross-reference datasheet dimensions against PCB layout requirements before ordering.
Edgeboard Connectors Selection Notes
Select this model for applications requiring dual-sided card edge connections with standard 2.54mm spacing. Ensure the host PCB accommodates the specified board thickness range of 1.37mm to 1.78mm. Consider the vertical mounting profile and flange hole diameter for mechanical integration.
Edgeboard Connectors Part Context
Part of the EDAC 395 series, designed for general-purpose card edge applications. The series offers various position counts and edge configurations to support diverse electronic assembly needs. This specific variant focuses on dual-edge connectivity with standardized pitch dimensions.
Edgeboard Connectors Replacement Considerations
Compatible substitutes within the EDAC 395 series include 395-046-540-404 and 395-046-540-804. Verify that alternative suffixes match the required contact plating thickness and flange characteristics before substitution.
