395-046-541-858

$9.50

Description：CONN EDGE DUAL FMALE 46POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box

SKU:0968e39ac90a Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

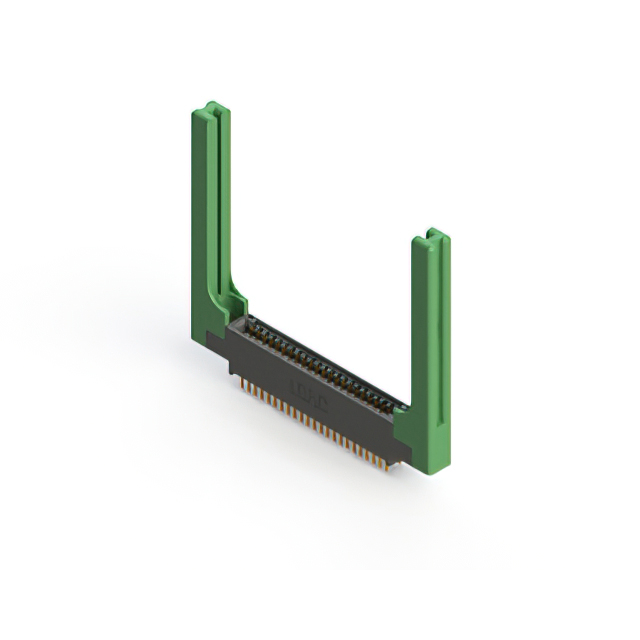

395-046-541-858 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 46POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-046-541-858

Description：CONN EDGE DUAL FMALE 46POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：23
Number of Positions：46
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-046-541-858

395-046-541-858

Edgeboard Connectors Overview

The EDAC Inc. 395-046-541-858 is a card edge connector featuring 46 positions with a 0.100 inch (2.54mm) pitch. It is designed for dual female contact configurations on non-specified dual-edge cards. The component utilizes gold-plated contacts and accepts board thicknesses ranging from 0.054 to 0.070 inches. It supports through-hole termination and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

Dual-edge female contact configuration for robust signal integrity
Gold-plated contacts ensure reliable electrical performance
Through-hole termination method for secure PCB mounting

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Consumer electronics mainboard connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm flange type and insulation material variations. Ensure compatibility with target PCB stack-up dimensions before procurement. Confirm RoHS compliance status via current manufacturer datasheets, as regulatory updates can alter component specifications over time.

Edgeboard Connectors Selection Notes

Select this model when dual-edge connectivity is required for 46-position interfaces. Verify that the target printed circuit board thickness falls within the specified 0.054 to 0.070 inch range. Consider the operating temperature requirements and ensure they align with the -40°C to 105°C operational window defined by the manufacturer.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination options. This specific part number represents a dual-edge variant, distinguishing it from single-edge counterparts within the same product family.
