395-047-524-607

Edgeboard Connectors Overview

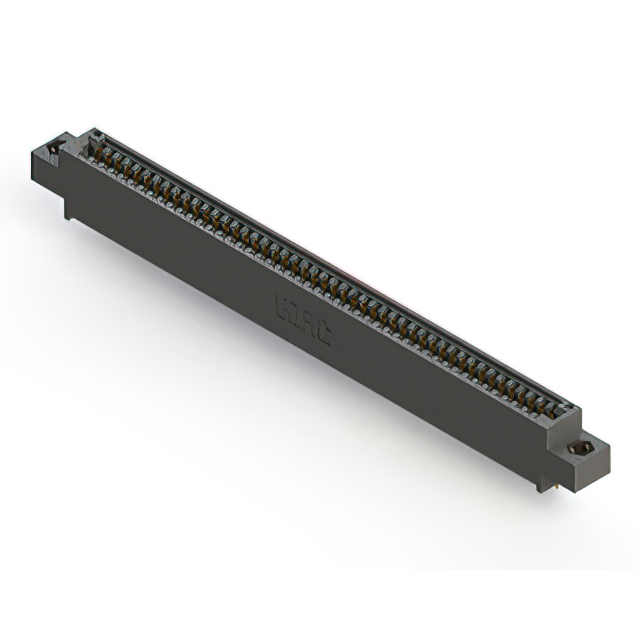

The EDAC Inc. 395-047-524-607 is a single-row card edge connector featuring 47 positions with a 0.100" (2.54mm) contact spacing. Designed for non-specified single-edge boards, it utilizes female cantilever contacts made of copper alloy with gold plating. The unit supports PCB thicknesses ranging from 0.054" to 0.070" (1.37mm to 1.78mm). It employs wrap-around termination and features a black thermoplastic polyester insulator body. The connector operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-edge configuration with female cantilever contacts
• Wrap-around termination method for secure connection
• Gold-plated copper alloy contacts for conductivity
• Thermoplastic polyester insulator housing

Edgeboard Connectors Applications

• General-purpose electronic circuit board interconnections
• Industrial control system module interfaces
• Communication equipment signal routing
• Automotive electronics subsystem connections

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to ensure compatibility with target PCB thickness and row configuration. Confirm that the single-edge design aligns with the mating card requirements. Check for RoHS compliance status if environmental regulations apply to the end product. Ensure the wrap-around termination capability matches the available board pad layout.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 47 positions is required. The 0.100" pitch suits standard board layouts. Verify that the target application accommodates the specified PCB thickness range. Consider the operating temperature limits for environmental suitability. Evaluate the need for gold plating based on corrosion resistance requirements in the deployment environment.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 395 series, which provides various configurations for card edge applications. The series offers multiple position counts and termination styles. This specific model focuses on single-edge connectivity. It serves as a reliable interface solution for modular electronic designs requiring stable electrical connections.

Edgeboard Connectors Replacement Considerations

Consult official EDAC catalogs for direct substitutes within the 395 series. Verify identical pin counts, pitch, and termination methods before substitution. Cross-reference mechanical dimensions to ensure fitment.
