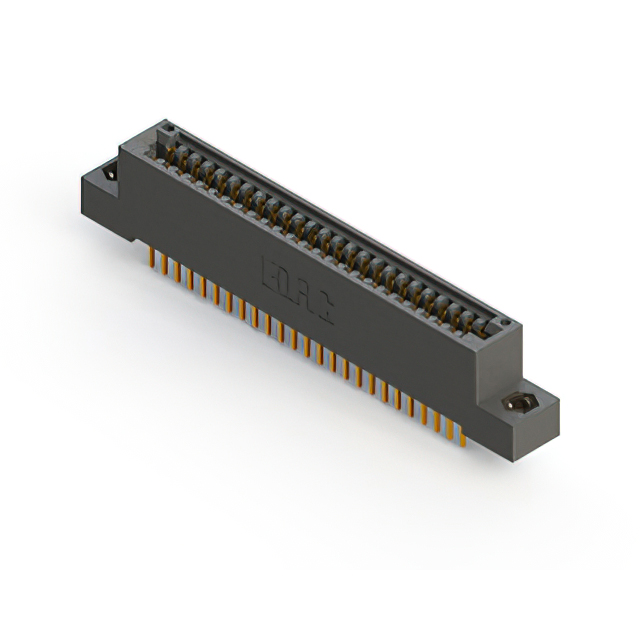

395-050-540-208 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 50POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 395-050-540-208
- Description：CONN EDGE DUAL FMALE 50POS 0.100
- Series：395
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：25
- Number of Positions：50
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 395-050-540-208
Edgeboard Connectors Overview
The EDAC Inc. model 395-050-540-208 is a standard card edge connector designed for dual-edge board insertion. It features 50 positions with a 0.100 inch (2.54mm) contact spacing. The connector utilizes female contacts with gold plating and employs a wire wrap termination method. Constructed with black thermoplastic insulation, it supports vertical mounting on printed circuit boards.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for secure board retention
- Gold-plated contacts ensure reliable signal transmission
- Wire wrap termination provides robust electrical connections
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Test and measurement instrumentation modules
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix to confirm the exact contact count, termination style, and flange characteristics required for the design. Ensure compatibility with the target PCB thickness and mating card dimensions before finalizing procurement orders to prevent integration issues.
Edgeboard Connectors Selection Notes
Select this component when a dual-sided connection interface is necessary for high-reliability applications. The wire wrap termination suits environments requiring mechanical stability without soldering. Confirm that the 50-position layout aligns with the available board space and signal routing requirements.
Edgeboard Connectors Part Context
This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination options. The 395-050-540-208 specifically addresses needs for dual-edge connectivity with standardized 2.54mm pitch spacing in industrial settings.
Edgeboard Connectors Replacement Considerations
Direct substitutes within the same series include models like 395-050-540-407 or 395-050-540-188, which share similar form factors but may differ in flange details or packaging. Verify dimensional drawings before substitution.
