395-050-555-504

Edgeboard Connectors Overview

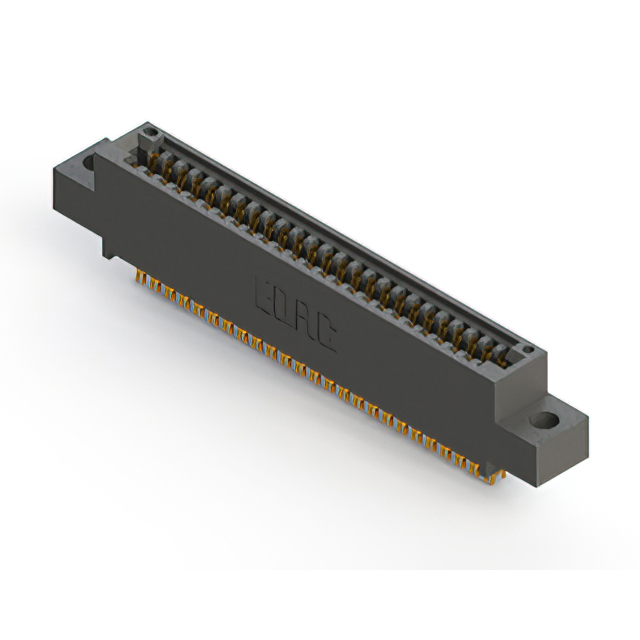

The EDAC Inc. 395-050-555-504 is a standard card edge connector designed for vertical board-to-board connections. It features a dual female configuration with 50 positions and a 0.100-inch (2.54mm) pitch. The contacts are constructed from copper alloy with gold plating to ensure reliable signal transmission. This component utilizes a solder eyelet termination method for secure PCB mounting. The insulator is made of black thermoplastic material, providing durability in various electronic assemblies.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for robust board interconnection
• Gold-plated copper alloy contacts for enhanced conductivity
• Solder eyelet termination for stable surface-mount installation

Edgeboard Connectors Applications

• Vertical circuit board stacking systems
• Industrial control module interfaces
• Telecommunications equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact termination type and flange options. Ensure the target application supports the required 0.100-inch pitch and dual-row configuration. Confirm compliance with RoHS directives if environmental regulations apply to the final assembly. Cross-reference the base number 395-050 with official EDAC documentation to validate pin count and mechanical dimensions before procurement.

Edgeboard Connectors Selection Notes

Select this connector when a vertical dual-edge interface is required for high-density signal routing. The 50-position layout suits applications needing moderate I/O counts within a compact footprint. Consider the solder eyelet termination for through-hole or specialized surface-mount processes. Evaluate the gold plating thickness requirements for long-term reliability in harsh environments compared to tin alternatives.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various configurations including single and dual edges with different position counts. The 395-050 variant specifically addresses needs for 50-contact dual-edge applications. The series is widely used in modular electronic systems requiring reliable vertical interconnects.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 395 series parts with matching 50-position dual-edge specifications. Verify that alternative models maintain the same 0.100-inch pitch and solder eyelet termination style. Check for identical flange characteristics and insulator material properties to ensure mechanical compatibility.
