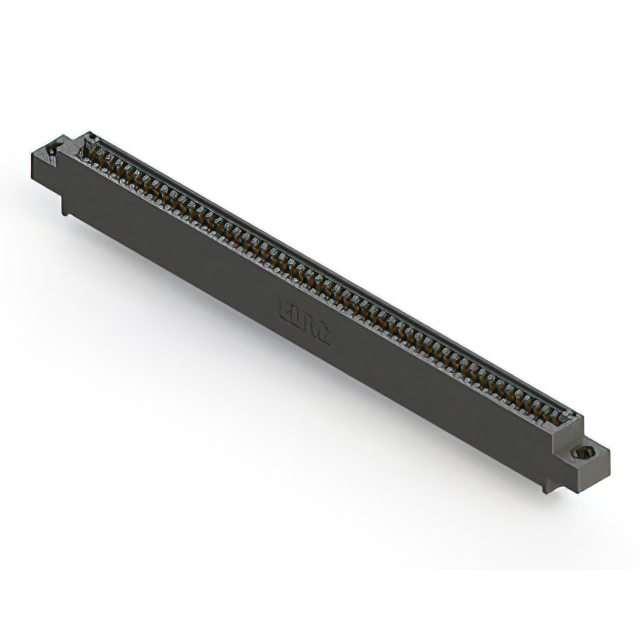

395-052-521-607 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 52POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 395-052-521-607
- Description：CONN EDGE SINGLE FML 52POS 0.100
- Series：395
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：52
- Number of Positions：52
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Top Mount Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 395-052-521-607
Edgeboard Connectors Overview
The EDAC Inc. 395-052-521-607 is a single-row card edge connector with 52 positions and a 0.100-inch (2.54mm) contact spacing. It features female contacts with gold plating, designed for non-specified single-edge cards. The unit supports PCB thicknesses from 0.054 to 0.070 inches (1.37mm to 1.78mm). Constructed with copper alloy contacts and thermoplastic polyester insulation, it operates within a temperature range of -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Single-edge connection design for standard card insertion
- Gold-plated contacts ensure reliable signal transmission
- Thermoplastic polyester housing provides thermal stability
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Consumer electronics module connections
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and flange characteristics. Ensure the selected variant matches the required PCB thickness tolerance and mounting orientation for your specific application design constraints.
Edgeboard Connectors Selection Notes
Select this component when a single-row interface with 52 positions is required. Confirm that the target printed circuit board utilizes a single-edge profile compatible with the specified thickness range. Verify that the operating environment remains within the rated temperature limits for long-term reliability.
Edgeboard Connectors Part Context
This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination options. This specific model represents a single-row configuration suitable for applications requiring moderate density interconnects with robust mechanical retention.
Edgeboard Connectors Replacement Considerations
Consult official EDAC cross-reference guides for verified substitute part numbers. Ensure any replacement maintains identical pitch, row count, and termination method to guarantee mechanical fit and electrical continuity without redesigning the host assembly.
