Edgeboard Connectors Overview

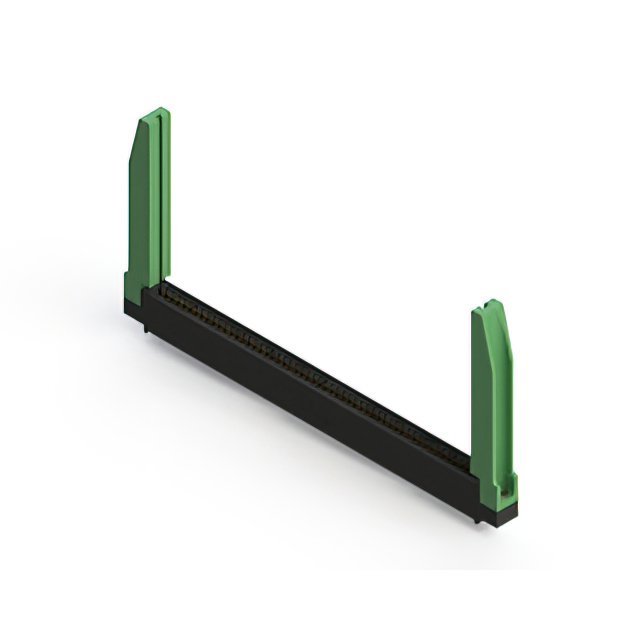

The EDAC Inc. 395-055-525-478 is a standard card edge connector designed for single-edge board applications. It features 55 positions with a 0.100 inch (2.54mm) pitch and utilizes female contacts. The connector supports a PCB thickness range of 0.054 to 0.070 inches and operates within a temperature range of -40°C to +105°C. Constructed with copper alloy contacts featuring gold plating, it ensures reliable electrical performance in demanding environments.

Edgeboard Connectors Feature Summary

• Features cantilever spring contact design for secure board retention
• Utilizes thermoplastic polyester insulation for high-temperature stability
• Includes top mount opening and threaded inserts for panel installation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment signal routing
• Automotive electronics module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct flange and termination specifications. Confirm that the required PCB thickness falls within the specified operational range. Check for RoHS compliance status relevant to your assembly requirements. Ensure compatibility with existing mounting hardware due to the threaded insert feature. Validate lead times through authorized distributors as availability may vary.

Edgeboard Connectors Selection Notes

Select this component when a single-row, non-specified card edge interface is required. The 0.100-inch pitch accommodates standard board layouts. Consider the vertical panel mount style for space-constrained enclosures. The gold-plated contacts are suitable for low-voltage signal transmission. Verify that the thermal rating meets the operating environment conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of edgeboard connectors. The series offers various position counts and termination options. It is designed for general-purpose electronic applications requiring durable mechanical connections. The product line emphasizes reliability and ease of installation in industrial settings.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitutes. Ensure replacement parts match the pin count, pitch, and mounting configuration. Verify identical electrical ratings and material specifications before substitution.
