Edgeboard Connectors Overview

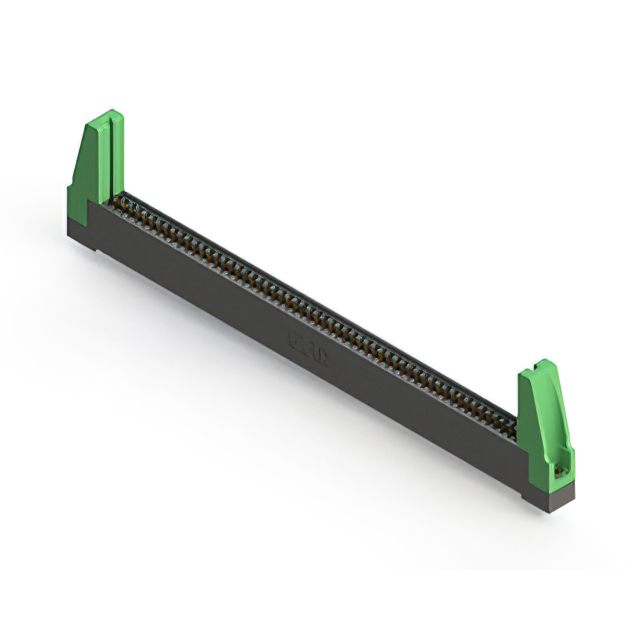

The EDAC Inc. 395-059-523-188 is a single-row card edge connector designed for vertical panel mounting. It features 59 positions with a 0.100-inch (2.54mm) pitch and accepts board thicknesses of 1.57mm. The connector utilizes female copper alloy contacts with gold plating and terminates via solder pins. Constructed with a thermoplastic polyester insulator, it operates within a temperature range of -40°C to +105°C and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure installation
• Gold-plated female contacts for reliable signal transmission
• Thermoplastic polyester housing for thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the specific pin count and termination style against the official datasheet before integration. Confirm that the required board thickness aligns with the connector's acceptance range. Ensure compliance with RoHS3 standards if environmental regulations apply to the final assembly. Cross-reference the manufacturer part number to avoid confusion with similar series variants.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for single-sided card edges. The 0.100-inch pitch suits standard digital signaling applications. Verify that the 3A current rating meets the circuit requirements. Consider the black color coding if visual identification is necessary for assembly processes.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 Series, which specializes in standard card edge connectors. The series offers various position counts and termination options to accommodate different PCB designs. The 395-059 variant specifically addresses needs for moderate density connections in industrial environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 395 series parts with matching 59-position counts and vertical mounting styles. Ensure any replacement maintains the same 0.100-inch pitch and gold contact finish. Verify mechanical dimensions for panel cutout compatibility.
