395-059-525-188

Edgeboard Connectors Overview

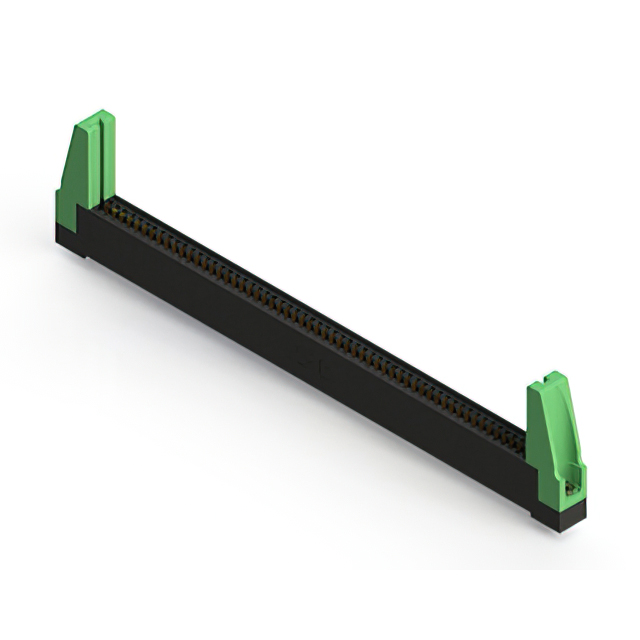

The EDAC Inc. 395-059-525-188 is a single-row female card edge connector designed for vertical panel mounting. It features 59 positions with a 0.100 inch (2.54 mm) contact pitch. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. This component supports printed circuit boards with thicknesses ranging from 0.062 inches to 0.093 inches. It utilizes a solder pin termination method for secure attachment to the host board.

Edgeboard Connectors Feature Summary

• Single-row female configuration for standard card edge applications
• Gold-plated copper alloy contacts for corrosion resistance
• Vertical panel mount design with solder pin termination

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Consumer electronics internal module connections

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 59-position count and single-row layout. Confirm compatibility with the target PCB thickness range of 0.062 to 0.093 inches. Ensure the vertical panel mount orientation aligns with the mechanical assembly constraints. Check for RoHS compliance requirements if applicable to the end product regulations.

Edgeboard Connectors Selection Notes

Select this connector when a single-row interface with a 2.54 mm pitch is required. Consider the vertical mounting style for space-constrained panel installations. Evaluate the current rating and insulation resistance specifications against the system's electrical demands. Verify that the housing material meets the environmental temperature requirements of the deployment scenario.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series, which specializes in high-reliability card edge connectors. The series offers various position counts and row configurations to support diverse electronic interconnection needs. EDAC designs these components to meet stringent performance standards for industrial and commercial applications.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 395 series variants such as 395-059-525-188 equivalents. Verify mechanical dimensions and pinout compatibility before substitution. Ensure that any alternative maintains the same contact pitch and termination type.
