395-066-524-678

Edgeboard Connectors Overview

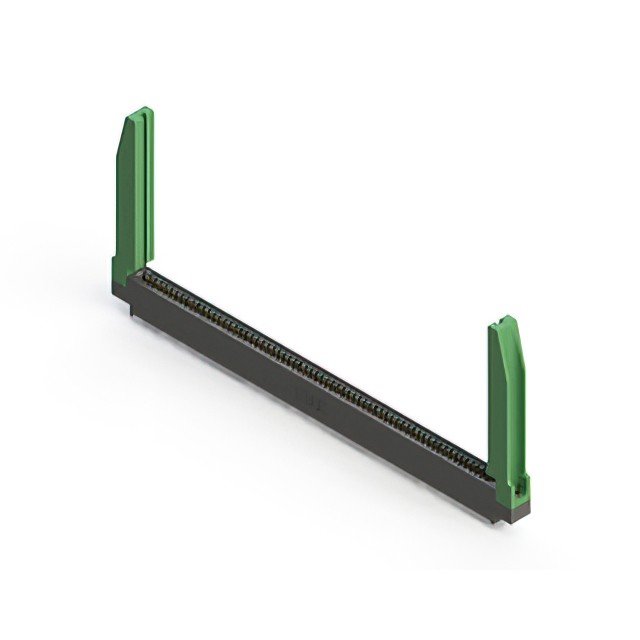

The EDAC Inc. 395-066-524-678 is a single-row card edge connector featuring 66 positions with a 0.100-inch (2.54mm) pitch. Designed for vertical through-hole mounting, it utilizes female cantilever contacts with gold plating to ensure reliable signal transmission. The connector accommodates non-specified single-edge cards with thicknesses ranging from 0.054 to 0.070 inches. Constructed with black thermoplastic polyester insulation, it supports operating temperatures between -40°C and 105°C.

Edgeboard Connectors Feature Summary

• Single-row configuration with 66 female cantilever contacts
• Vertical through-hole termination for secure PCB integration
• Gold-plated terminals for enhanced conductivity and corrosion resistance
• Thermoplastic polyester insulation supporting industrial temperature ranges

Edgeboard Connectors Applications

• Industrial control systems requiring robust peripheral connections
• Communication equipment utilizing standard card edge interfaces
• Automotive electronics modules needing reliable signal pathways
• Medical device assemblies demanding stable electrical connectivity

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, contact material specifications, and flange configurations. Ensure compatibility with target card thickness limits of 0.054 to 0.070 inches. Confirm RoHS compliance status and environmental certifications required for the intended deployment region before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 66 positions is required for vertical board-to-board or card-to-board applications. It is suitable for designs needing cantilever contact technology for easy insertion and removal. Consider the 0.100-inch pitch constraint and verify that the mating card meets the specified thickness range for optimal mechanical retention and electrical performance.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series, a line of standard card edge connectors designed for general-purpose electronic applications. The series offers various position counts and termination styles to support diverse system architectures. As an edgeboard connector, it facilitates modular expansion and interconnection in compact electronic enclosures.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct equivalents within the 395 series. Verify dimensional compatibility and electrical ratings before considering alternative manufacturers. Generic substitutes may lack the specific cantilever contact geometry or flange features of the original part.
