395-066-542-203

Edgeboard Connectors Overview

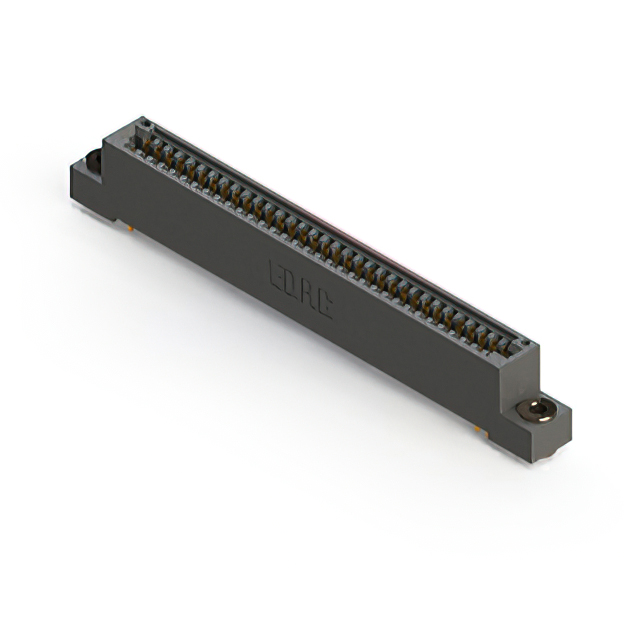

The EDAC Inc. part number 395-066-542-203 is a standard card edge connector designed for dual-edge mating configurations. It features 66 positions with a 0.100 inch (2.54mm) pitch and utilizes female contacts. The connector employs wire wrap termination methods and includes flanges for secure panel mounting. Constructed with gold-plated copper alloy contacts and a black thermoplastic insulator, it supports PCB thicknesses within the specified range and operates reliably across a temperature span of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for robust board interconnection
• Wire wrap termination method ensuring reliable electrical connections
• Gold-plated contacts on copper alloy substrates for corrosion resistance
• Integrated flange design facilitates secure panel mounting

Edgeboard Connectors Applications

• Industrial control systems requiring durable edge card interfaces
• Telecommunications equipment utilizing modular board architectures
• Test and measurement instrumentation with frequent board swapping
• Automotive electronics modules needing high-reliability connectors

Edgeboard Connectors Procurement Notes

Verify the complete part number against official manufacturer documentation to ensure correct series and termination type alignment. Confirm that the specific suffix matches the required flange and contact plating specifications. Cross-reference the datasheet for precise dimensional tolerances and mating force requirements before finalizing procurement orders to prevent integration issues.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with wire wrap termination is required. Ensure the target PCB thickness falls within the compatible range for proper contact engagement. Verify that the panel mounting holes align with the provided flange dimensions. Consider the operating temperature range and environmental exposure conditions to confirm material suitability for the intended application environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination options tailored for diverse electronic assembly needs. The 395-066 variant specifically addresses applications requiring 66 signal paths with dual-sided connectivity, providing a standardized solution for high-density interconnects in professional electronic hardware designs.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 66-position count, dual-edge female configuration, and wire wrap termination style. Verify identical 0.100 inch pitch and compatible flange mounting dimensions. Ensure replacement parts maintain equivalent gold plating thickness and thermal performance ratings to guarantee functional interchangeability without redesigning the host panel or PCB layout.
