395-068-520-207

Edgeboard Connectors Overview

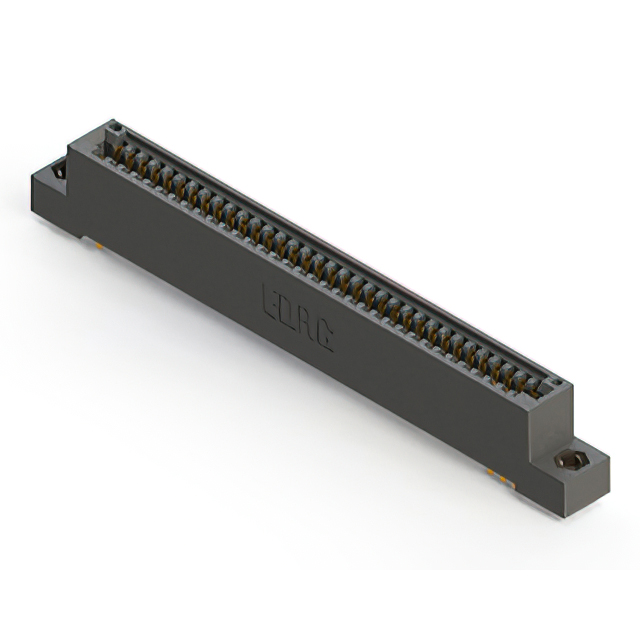

The EDAC Inc. 395-068-520-207 is a standard card edge connector designed for dual-edge board insertion. It features 68 positions with a contact spacing of 0.100 inches (2.54 mm) and a row spacing of 0.200 inches (5.08 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contact plating is gold over nickel, housed in black polyphenylene sulfide (PPS), and rated for 3 A current.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure board retention
• Gold-plated contacts ensure reliable signal transmission
• Polyphenylene sulfide housing provides thermal stability

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Consumer electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact pin count, contact material, and housing color. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm RoHS compliance status through the latest datasheet before procurement.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection is required for a 68-position interface. The 0.100-inch pitch suits general-purpose digital signals. Verify that the application environment does not exceed the thermal limits of the PPS housing material.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and mounting styles. The 395-068-520-207 variant specifically addresses high-density vertical interconnect needs for double-sided circuit boards.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 395 series parts for alternative position counts. Verify mechanical dimensions and electrical ratings match before substituting with generic equivalents.
