395-068-540-588

Edgeboard Connectors Overview

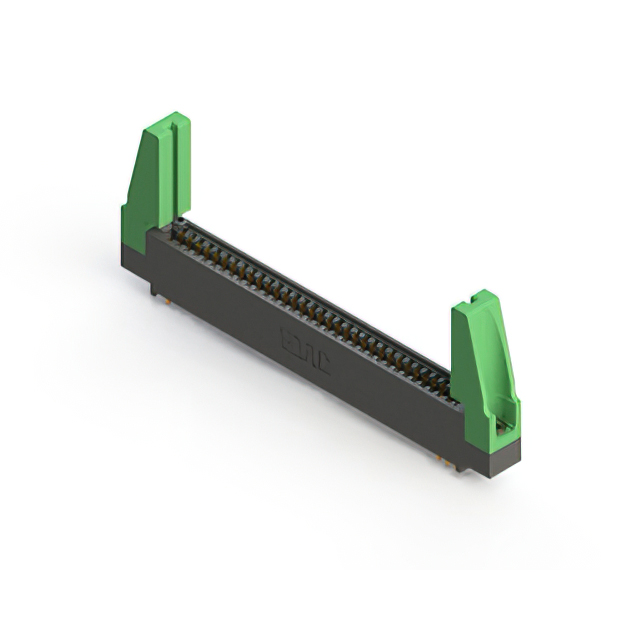

EDAC Inc. part number 395-068-540-588 is a standard card edge connector from the 395 series. It features 68 positions with a dual female configuration and a 0.100-inch (2.54mm) contact spacing. The connector utilizes wire wrap termination for reliable circuit attachment. Key specifications include gold-plated contacts, a black thermoplastic polyester insulator, and a working temperature range of -40°C to +105°C. Designed for through-hole mounting, it accommodates board thicknesses between 0.054 and 0.070 inches.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for high-density interconnect applications
• Gold-plated copper alloy contacts ensure durable signal transmission
• Wire wrap termination method provides secure mechanical and electrical connections
• Black thermoplastic polyester insulation offers thermal stability and durability

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standard pitch connectors
• Automotive electronics modules needing reliable signal pathways
• Medical device internal circuit board interconnections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material variations. Ensure compatibility with target PCB thickness limits before procurement. Cross-reference RoHS compliance status with current regulatory requirements. Confirm that wire wrap termination tools match the specified tail dimensions for proper assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 68-position interface with 0.100-inch spacing is required. The wire wrap termination suits environments where vibration resistance is critical. Evaluate the operating temperature range against system thermal profiles. Consider the physical height and flange characteristics for enclosure fitment during the design phase.

Edgeboard Connectors Part Context

The 395 series represents EDAC's standard line of card edge connectors, characterized by consistent 0.100-inch spacing across various pin counts. This model belongs to a family designed for general-purpose electronic interconnects. The series emphasizes reliability through standardized materials and proven termination methods, serving as a foundational component in various electronic assemblies.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the 395 series require matching position count and termination style. Verify that alternative part numbers maintain identical spacing and row configuration. Cross-check flange dimensions and mounting hole specifications to ensure mechanical compatibility without redesigning the host PCB layout.
