Edgeboard Connectors Overview

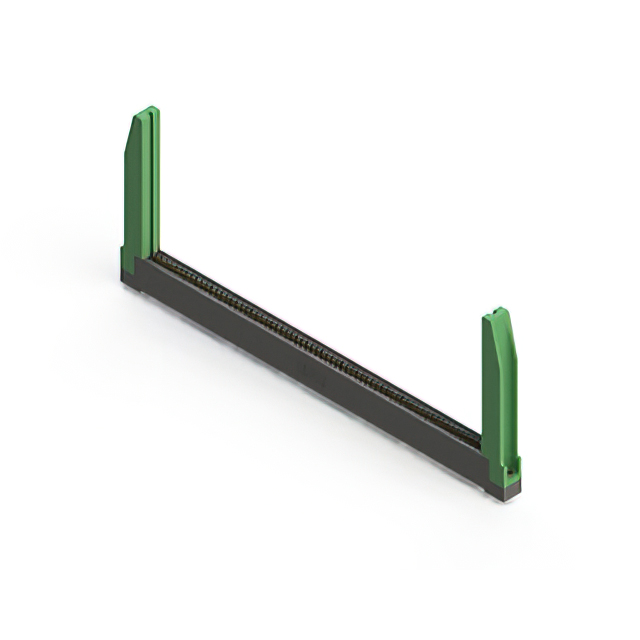

The EDAC Inc. 395-068-541-178 is a card edge connector designed for vertical through-hole mounting. It features a dual-row configuration with 68 total positions and a 0.100-inch (2.54mm) pitch. The connector utilizes female contacts with a cantilever spring design, finished with a 10.0µin gold plating over a copper alloy base. It accommodates board thicknesses ranging from 0.054 to 0.070 inches. The housing is constructed from black thermoplastic polyester, providing reliable insulation and mechanical stability.

Edgeboard Connectors Feature Summary

• Cantilever spring contact design ensures secure mating engagement
• Gold-plated terminals provide corrosion resistance and conductivity
• Thermoplastic polyester insulator offers thermal stability

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Automotive electronics

Edgeboard Connectors Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm compliance with current RoHS3 standards. Ensure that the required flange characteristics match the application's mounting constraints, as variations exist within the series. Cross-reference datasheet specifications for operating temperature ranges and material composition before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component based on the requirement for a 68-position single-edge interface with a standard 0.100-inch pitch. Confirm compatibility with the target PCB thickness of 0.054 to 0.070 inches. Evaluate the need for vertical orientation and through-hole termination methods. Consider the environmental rating and material properties if the deployment involves high temperatures or corrosive atmospheres.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series, which specializes in standard card edge connectors. The series provides various configurations for different pin counts and row arrangements. These connectors are engineered for general-purpose interconnect applications requiring robust mechanical retention and electrical reliability in dense circuit layouts.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct substitute part numbers within the same series. Verify dimensional compatibility and electrical specifications when considering alternative suppliers.
