Edgeboard Connectors Overview

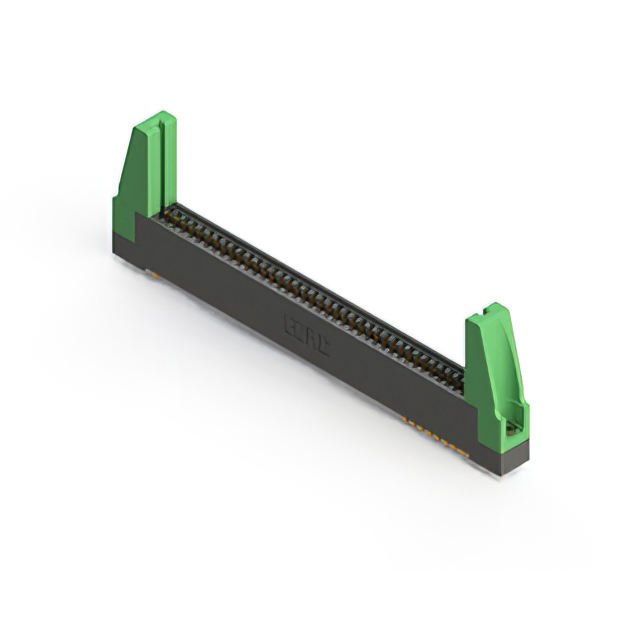

The EDAC Inc. 395-080-544-288 is a dual-edge female card edge connector designed for vertical through-hole mounting. It features 80 positions with a 0.100-inch (2.54mm) pitch and gold-plated contacts. The unit accommodates board thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C. Constructed with thermoplastic polyester insulation, it includes top-mounting flanges with M3 threaded inserts for secure installation.

Edgeboard Connectors Feature Summary

• Dual-edge configuration supports two rows of contacts for high-density signal routing
• Gold-plated cantilever spring contacts ensure reliable electrical connection
• Thermoplastic polyester housing provides thermal stability and durability
• Vertical orientation facilitates standard printed circuit board integration

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Automotive electronic module connections
• Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffix digits to ensure correct contact plating, flange type, and termination style. Confirm that the required board thickness falls within the specified operational range. Check RoHS compliance status against current regulatory requirements. Ensure the ordering quantity matches the manufacturer's standard packaging specifications to avoid partial reel issues.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge interface is required for vertical PCB mounting. The 0.100-inch pitch suits general-purpose digital and analog signals. Verify that the mechanical clearance allows for the specified flange dimensions. Consider the operating temperature range if the environment exceeds standard commercial limits. Ensure the mating card thickness aligns with the connector's tolerance specifications.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 395 series, which offers various configurations for card edge applications. The series provides options for single or dual edges with different pin counts and termination methods. This specific model utilizes a dual-edge design to maximize connectivity in a compact footprint while maintaining robust mechanical stability through its flanged mounting structure.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 395 series dual-edge connectors with identical 80-position counts and 0.100-inch pitch. Verify that any alternative maintains the same vertical mounting orientation and flange characteristics. Cross-reference the contact material and plating thickness to ensure equivalent performance standards.
