395-096-525-878

Edgeboard Connectors Overview

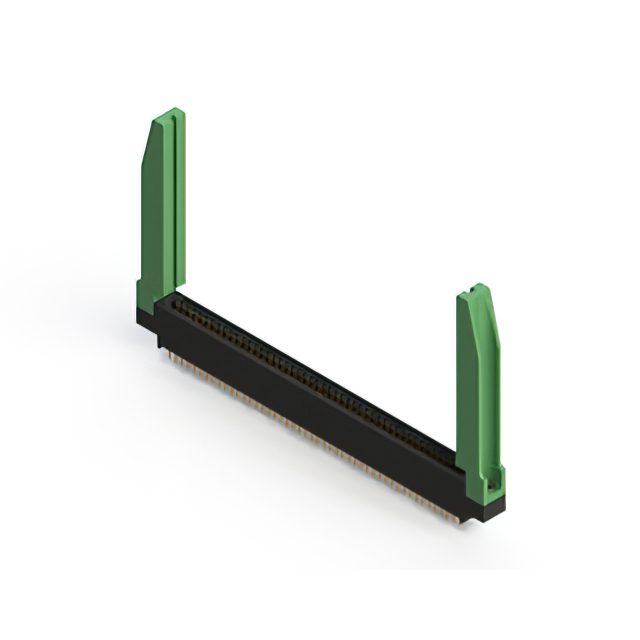

The EDAC Inc. part number 395-096-525-878 is a standard card edge connector designed for reliable signal transmission in electronic assemblies. This component features a dual female configuration with 96 positions arranged across two rows. The connector utilizes a 0.100-inch (2.54mm) pitch to accommodate standard circuit board layouts. It employs gold-plated contacts to ensure consistent conductivity and corrosion resistance over time. The housing is constructed from thermoplastic polyester, providing structural integrity and thermal stability. Designed for panel installation, this connector supports vertical mounting orientations. It is rated for operation within a temperature range of -40°C to +105°C, ensuring functionality in demanding environments.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for high-density interconnection
• Gold-plated contacts for enhanced conductivity and durability
• Thermoplastic polyester insulation for thermal stability
• Vertical panel mount design for secure integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust connectivity
• Telecommunications equipment interface modules
• Automotive electronics assembly boards
• Medical device internal circuit connections

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes against official manufacturer documentation before ordering. Confirm that the specific suffix matches the required contact plating and termination style specifications. Ensure compatibility with the target PCB thickness and mounting hole dimensions. Request updated availability status directly from authorized distributors as supply levels fluctuate. Cross-reference the datasheet revision date to confirm compliance with current environmental regulations such as RoHS standards.

Edgeboard Connectors Selection Notes

Evaluate the mechanical fit within the enclosure space constraints prior to selection. Assess the electrical requirements against the connector's current rating and voltage limits. Consider the mating cycle expectations if frequent connection changes are anticipated. Verify that the chosen orientation aligns with the system's cable routing or board stacking needs. Review the termination method compatibility with the manufacturing process capabilities.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various pin counts and configurations to support diverse electronic design requirements. EDAC specializes in interconnect solutions for industrial, medical, and telecommunications sectors. The 395 series is known for its reliability and standardized dimensions. This specific model represents a high-pin-count option within the lineup.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC models within the same series with compatible pin counts. Check cross-reference lists provided by authorized distributors for equivalent parts. Ensure any replacement maintains identical pitch, row count, and mounting style. Verify that alternative sources offer the same material specifications and certifications.
