395-098-542-588

Edgeboard Connectors Overview

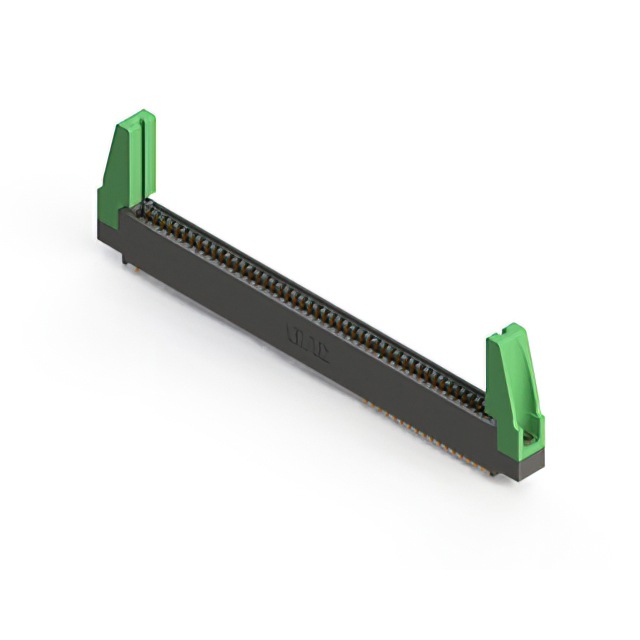

The EDAC Inc. 395-098-542-588 is a standard card edge connector designed for vertical through-hole mounting. It features 98 positions with a 0.100 inch (2.54 mm) pitch and supports dual-edge female contacts. The connector accommodates board thicknesses of 1.57 mm and utilizes gold-plated copper alloy terminals housed in black thermoplastic polyester insulation. It operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for robust signal integrity
• Gold-plated copper alloy terminals ensure reliable conductivity
• Vertical through-hole mounting for secure PCB integration
• Thermoplastic polyester insulation provides thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications infrastructure equipment
• Automotive electronic modules
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and flange characteristics. Ensure the target application matches the specified 1.57 mm board thickness requirement. Confirm compliance with local environmental regulations, noting the RoHS3 status. Cross-reference the manufacturer part number with authorized distributor lists to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count dual-edge interface is required for vertical PCB assembly. The 0.100 inch pitch suits general-purpose digital and analog signal routing. Consider the operating temperature range and material compatibility with soldering processes. Evaluate mechanical stress requirements against the through-hole termination style.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and edge configurations to support diverse electronic design needs. The 395-098 variant specifically addresses applications demanding extensive I/O connections in a compact vertical footprint.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pin count, pitch, and mounting orientation before considering alternative sources.
