395-098-559-878

Edgeboard Connectors Overview

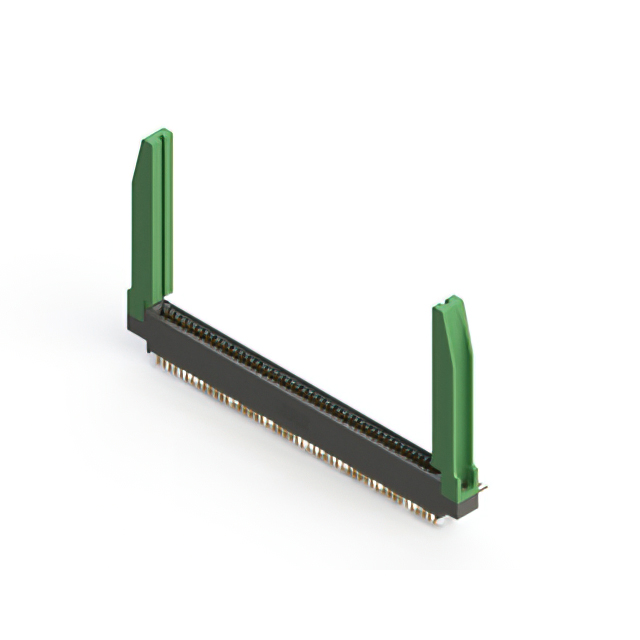

The EDAC Inc. 395-098-559-878 is a dual-edge female card edge connector from the 345/395 series. It features 98 positions with a 0.100 inch (2.54mm) pitch. The connector utilizes gold-plated contacts and a black thermoplastic polyester insulator. Designed for vertical installation, it accommodates board thicknesses of 1.57mm. This component supports RoHS3 compliance and is suitable for high-density interconnect applications requiring reliable signal transmission.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated contacts ensure durable electrical performance
• Vertical mounting orientation facilitates standard PCB assembly

Edgeboard Connectors Applications

• High-density electronic circuit board interconnections
• Industrial control system backplanes
• Telecommunications equipment signal routing

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffix digits to ensure correct pitch, position count, and termination style. Confirm that the required board thickness aligns with the specified 1.57mm tolerance. Check for RoHS3 compliance requirements if operating in regulated environments. Ensure vertical mounting space is available on the target PCB layout.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge interface is required for increased pin density within a single row footprint. Compare against single-edge alternatives if space constraints allow for wider boards. Verify that the 0.100 inch pitch matches existing design standards. Consider the vertical profile height for enclosure clearance calculations during the mechanical design phase.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series, which offers various configurations for card edge applications. The series provides options for different position counts and edge types. The 395-098 variant specifically addresses needs for higher channel counts in compact vertical layouts, maintaining compatibility with standard industry spacing metrics.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 98-position count, dual-edge female type, and 0.100 inch pitch. Verify identical vertical mounting orientation and compatible board thickness specifications. Cross-reference manufacturer datasheets to confirm matching material properties and contact plating standards before substitution.
