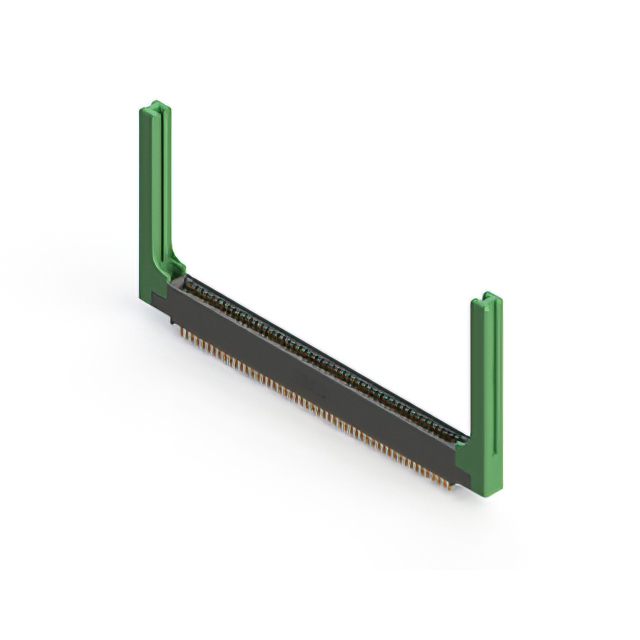

395-100-542-558 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FML 100POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 395-100-542-558
- Description：CONN EDGE DUAL FML 100POS 0.100
- Series：395
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：50
- Number of Positions：100
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 395-100-542-558
Edgeboard Connectors Overview
The EDAC Inc. 395-100-542-558 is a standard card edge connector designed for vertical through-hole mounting. It features 100 positions with a 0.100-inch (2.54mm) pitch across two rows of female contacts. The connector utilizes gold-plated cantilever spring contacts and a black thermoplastic polyester insulator. It supports dual-edge PCBs with thicknesses ranging from 0.054 to 0.070 inches.
Edgeboard Connectors Feature Summary
- Dual-row female contact configuration for high-density signal routing
- Gold-plated cantilever spring contacts ensure reliable electrical connection
- Vertical orientation facilitates direct board-to-board or backplane integration
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Medical equipment utilizing standardized card edge interfaces
- Communication infrastructure hardware modules
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and flange specifications. Ensure compatibility with target PCB thickness ranges before procurement. Confirm RoHS compliance status via current manufacturer datasheets as regulatory requirements may evolve.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge, 100-position interface is required. Verify that the mating card thickness falls within the specified operational range. Ensure the vertical mounting style aligns with the mechanical enclosure design constraints.
Edgeboard Connectors Part Context
This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and row configurations. This specific model provides a high-pin-count solution for applications demanding extensive I/O connectivity in a compact vertical form factor.
Edgeboard Connectors Replacement Considerations
Consult official EDAC cross-reference lists for verified substitutes. Generic equivalents may not match the precise cantilever contact force or dimensional tolerances required for reliable operation.
