395-126-540-288

$14.78

Description：CONN EDGE DUAL FML 126POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box

SKU:3b5445c0a43c Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

395-126-540-288 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FML 126POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-126-540-288

Description：CONN EDGE DUAL FML 126POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：63
Number of Positions：126
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-126-540-288

395-126-540-288

Edgeboard Connectors Overview

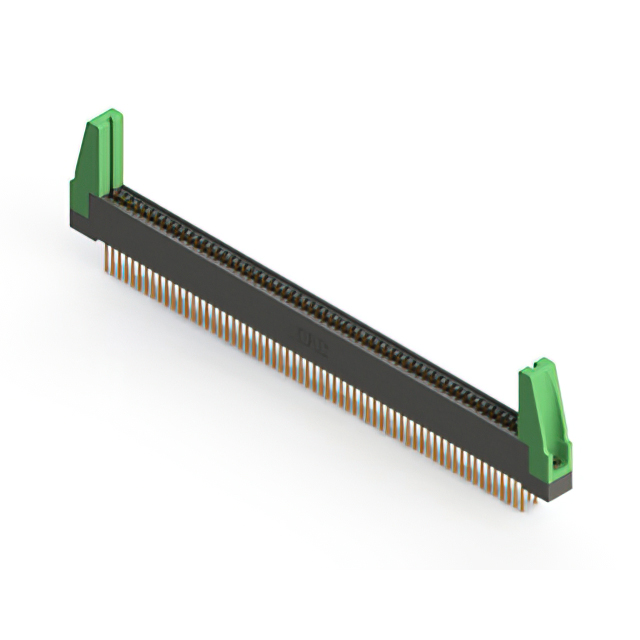

The EDAC Inc. 395-126-540-288 is a dual female card edge connector designed for vertical through-hole mounting. It features 126 positions with a 0.100-inch (2.54mm) pitch and gold contact finish. The connector supports board thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C. Constructed with copper alloy contacts and thermoplastic polyester insulation, it includes card guides for alignment.

Edgeboard Connectors Feature Summary

Dual female configuration with 126 positions for high-density signal routing
Vertical through-hole termination utilizing wire wrap technology
Integrated card guides ensure precise board insertion and alignment
Gold-plated copper alloy contacts provide reliable conductivity

Edgeboard Connectors Applications

Industrial control system backplanes
Telecommunications equipment interconnects
Medical device circuit board connections
Energy sector instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffixes to ensure correct packaging and orientation specifications. Confirm RoHS3 compliance status matches project requirements. Check lead times as standard delivery may vary. Ensure compatibility with existing panel mounting constraints and board thickness tolerances before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when high pin counts are required in a vertical form factor. The 0.100-inch pitch suits general-purpose digital signals. Verify that the target PCB thickness falls within the specified 0.054 to 0.070-inch range. Consider the wire wrap termination method for assembly processes. Evaluate thermal performance needs against the -40°C to 105°C operating limit.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic applications. Manufactured by EDAC Inc., these connectors utilize durable materials for stable electrical performance. The specific model provides a robust solution for connecting daughter cards to motherboards in structured environments.
