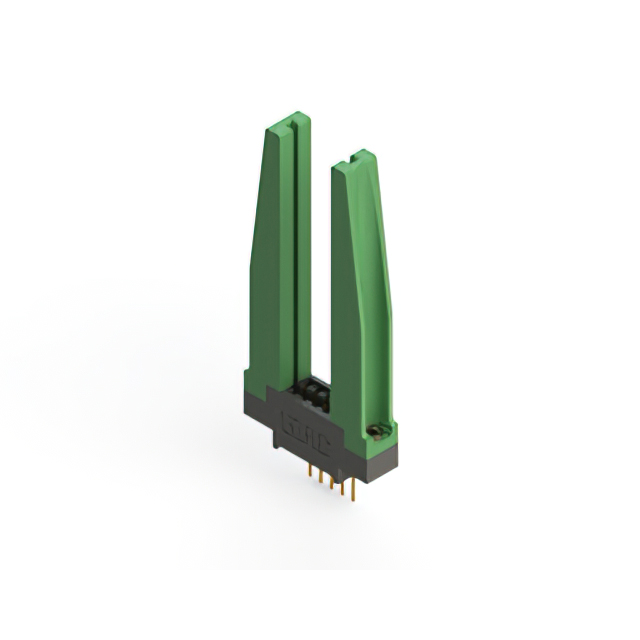

396-005-522-678 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 5POS 0.125. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 396-005-522-678
- Description：CONN EDGE SGL FMALE 5POS 0.125
- Series：396
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：5
- Number of Positions：5
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.125" (3.18mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 396-005-522-678
Edgeboard Connectors Overview
The EDAC Inc. 396-005-522-678 is a standard card edge connector from the 396 Series, designed for single-edge board applications. It features five positions with a 0.125-inch (3.18 mm) pitch. The connector utilizes gold-plated contacts to ensure reliable signal transmission and includes a black housing. It is configured as a female connector intended for vertical mounting on printed circuit boards.
Edgeboard Connectors Feature Summary
- Single-edge design accommodates specific board insertion requirements
- Gold-plated contacts provide durable electrical interfaces
- Vertical orientation supports standard PCB assembly layouts
Edgeboard Connectors Applications
- Electronic module interconnections
- Industrial control system backplanes
- Telecommunications equipment interfaces
Edgeboard Connectors Procurement Notes
Verify the exact contact plating thickness and material composition against the official datasheet before integration. Confirm that the board thickness matches the connector's tolerance specifications. Ensure the vertical mounting style aligns with the mechanical constraints of the final enclosure design.
Edgeboard Connectors Selection Notes
Select this component when a five-position interface with a 0.125-inch pitch is required. The single-edge configuration distinguishes it from double-sided alternatives. Verify compatibility with the target PCB edge width and thickness to ensure proper mechanical retention and electrical contact.
Edgeboard Connectors Part Context
This part belongs to the EDAC 396 Series, which offers various position counts and mounting styles. The 396-005-522-678 specifically addresses low-count connection needs within this family, providing a standardized solution for vertical card edge applications in compact electronic assemblies.
Edgeboard Connectors Replacement Considerations
Cross-reference with other 396 Series variants for different pin counts. Verify mechanical dimensions against similar connectors from alternative manufacturers if supply chain adjustments are necessary.
