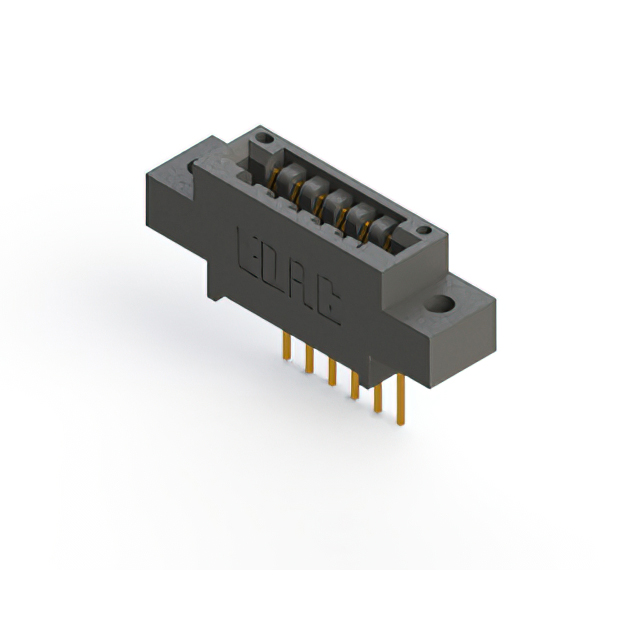

396-006-541-602 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 6POS 0.125. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 396-006-541-602
- Description：CONN EDGE SGL FMALE 6POS 0.125
- Series：396
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：6
- Number of Positions：6
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.125" (3.18mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 396-006-541-602
Edgeboard Connectors Overview
The EDAC Inc. 396-006-541-602 is a single-edge female card edge connector designed for vertical through-hole mounting. It features six positions with a 0.125-inch (3.18mm) contact spacing and gold-plated contacts. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with a high-profile insulator body, it provides reliable electrical interconnection in standard board applications.
Edgeboard Connectors Feature Summary
- Single-edge female configuration for vertical PCB insertion
- Gold-plated contacts ensure durable signal transmission
- High-profile insulator body accommodates standard board thicknesses
Edgeboard Connectors Applications
- General electronic equipment interconnects
- Industrial control system modules
- Consumer electronics assembly
Edgeboard Connectors Procurement Notes
Verify the specific part number against official EDAC documentation to confirm pin count, spacing, and termination style. Ensure compatibility with target PCB thickness and mounting requirements before procurement. Cross-reference manufacturer datasheets for accurate mechanical dimensions and environmental ratings.
Edgeboard Connectors Selection Notes
Select this component for applications requiring a single-row, low-pin-count connection with robust gold plating. Verify that the 0.125-inch pitch aligns with the design layout. Confirm that the vertical orientation and through-hole termination method fit the assembly constraints.
Edgeboard Connectors Part Context
This part belongs to the EDAC 396 series of standard card edge connectors. The series offers various position counts and configurations for diverse board-to-board or backplane connections. The 396-006 variant specifically addresses needs for minimal I/O points in compact designs.
Edgeboard Connectors FAQ
What is the contact spacing for this connector?
The contact spacing is 0.125 inches (3.18mm).
Is this a single or double edge connector?
It is a single-edge connector.
