396-007-558-603

Edgeboard Connectors Overview

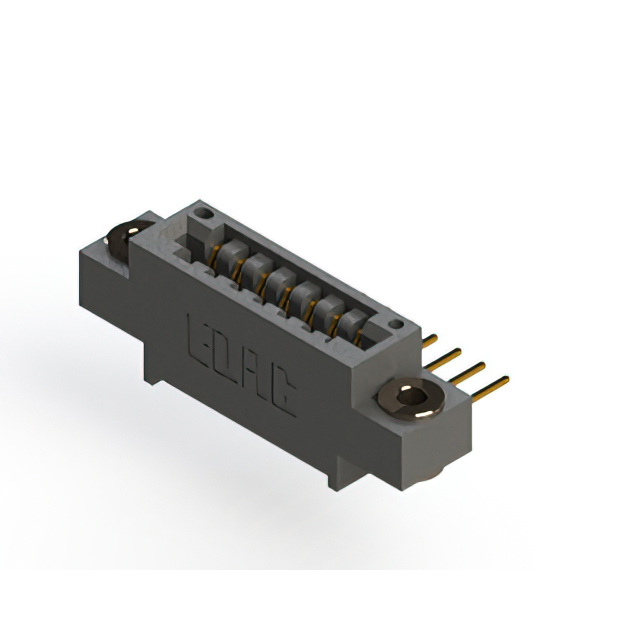

The EDAC Inc. 396-007-558-603 is a standard single-edge card edge connector featuring seven positions with a 3.175 mm pitch. Designed for vertical board mounting, it accommodates a PCB thickness of 1.57 mm. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. This component belongs to the EDAC 396 series, providing a secure mechanical interface for edge-board applications.

Edgeboard Connectors Feature Summary

• Single-edge female connector design for direct board insertion
• Vertical mounting orientation for space-efficient assembly
• Gold-plated contact surfaces for enhanced conductivity

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the exact part number against official EDAC documentation to confirm specifications. Check current availability status as supply may be restricted or limited in certain regions. Ensure compatibility with target PCB dimensions and mounting requirements before procurement.

Edgeboard Connectors Selection Notes

Select this connector when a seven-position vertical interface is required. Confirm that the PCB thickness matches the specified 1.57 mm tolerance. Verify that the 3.175 mm pitch aligns with the edge card layout. Consider the gold plating requirement for environmental durability.

Edgeboard Connectors Part Context

This component is part of the EDAC 396 series of standard card edge connectors. The series offers various position counts and configurations tailored for diverse electronic applications. EDAC specializes in robust interconnect solutions for demanding environments.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 396 series variants for different position counts. Verify mechanical fit and electrical compatibility before substituting with similar connectors from alternative manufacturers.
