396-013-520-101

Edgeboard Connectors Overview

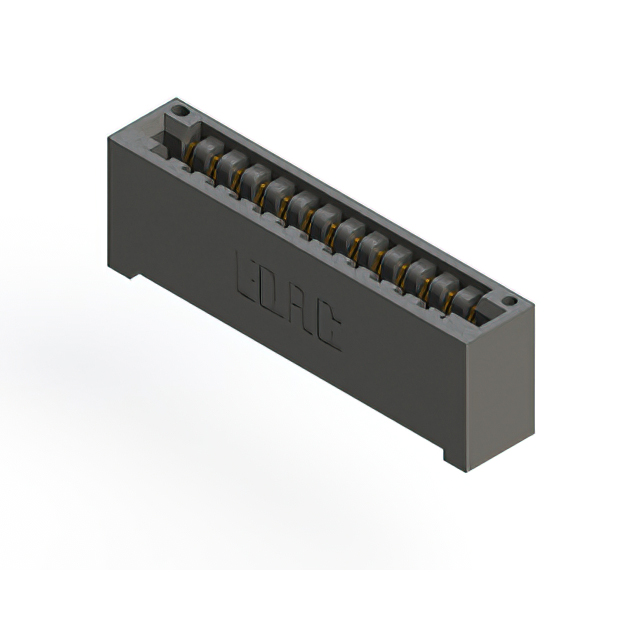

The EDAC Inc. 396-013-520-101 is a single-row card edge connector designed for vertical through-hole mounting. It features 11 positions with a 0.125-inch (3.18mm) contact spacing. The connector utilizes female, cantilever contacts with gold plating and a thickness of 10.0µin (0.25µm). It accommodates board thicknesses ranging from 0.054 to 0.070 inches (1.37mm to 1.78mm). The housing is constructed from black thermoplastic polyester, ensuring durability within an operating temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-row configuration with female cantilever contacts for reliable signal transmission
• Gold-plated terminals providing corrosion resistance and low contact resistance
• Thermoplastic polyester insulation offering thermal stability and mechanical strength

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics modules
• Medical device circuit boards
• Communication equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination type and packaging details. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference RoHS compliance status with current regulatory requirements for the intended market.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge interface is required. Confirm that the 0.125-inch pitch aligns with the design layout. Verify that the cantilever contact style meets the insertion force and retention requirements of the application environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 396 series of standard card edge connectors. The series offers various position counts and termination options. The 396-013 variant specifically addresses applications needing a compact, single-sided connection point with standardized dimensions.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Generic equivalents may not match the precise cantilever contact geometry or insulation material properties.
