396-013-521-608

Edgeboard Connectors Overview

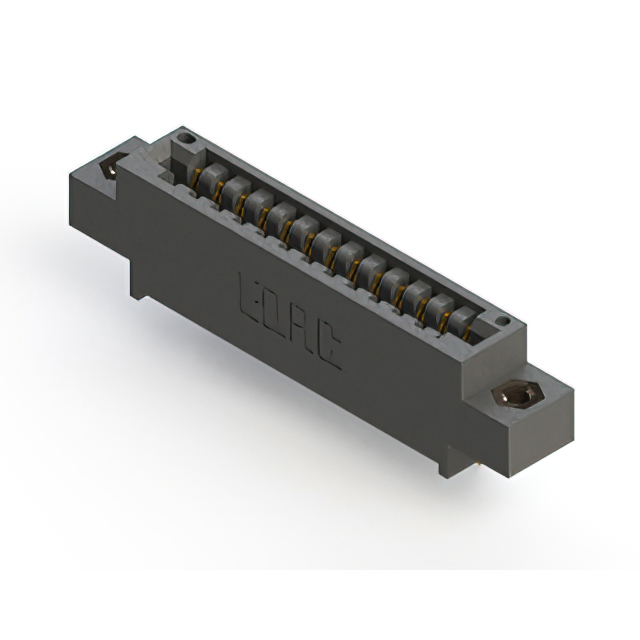

The EDAC Inc. 396-013-521-608 is a standard card edge connector designed for vertical through-hole mounting. It features a single row with 13 positions and a 0.125-inch (3.18mm) contact spacing. The connector utilizes gold-plated contacts on a black thermoplastic insulator, suitable for non-specified single-edge cards. It operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Vertical through-hole termination for secure PCB integration
• Gold-plated cantilever spring contacts ensure reliable signal transmission
• Single-row configuration optimized for space-constrained applications

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment internal circuit board connections
• Automotive electronics modules
• Telecommunications hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, plating thickness, and flange specifications. Ensure compatibility with target card edge thicknesses before procurement. Confirm RoHS compliance status if required by project regulations.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge interface is required. The 0.125-inch pitch accommodates standard board layouts. Verify that the mating card thickness falls within the specified operational range to ensure proper contact engagement and mechanical stability during operation.

Edgeboard Connectors Part Context

This part belongs to the EDAC 396 series, a line of standard card edge connectors known for durability in harsh environments. The series offers various position counts and configurations, providing scalable interconnect solutions for diverse electronic assembly needs across multiple industries.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct cross-reference substitutes. Generic equivalents may differ in contact material or flange dimensions. Verify mechanical fit and electrical ratings before substituting with alternative manufacturers' products.
