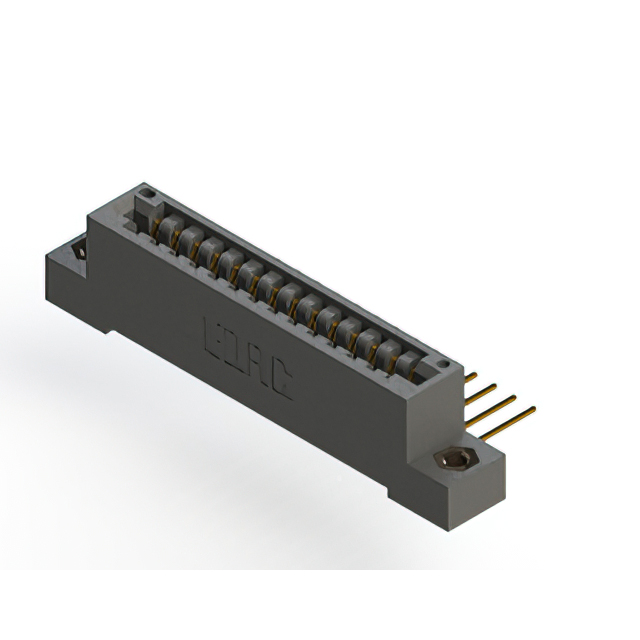

396-014-559-107

$10.00

Description：CONN EDGE SGL FMALE 14POS 0.125
Series：396
Mfr：EDAC Inc.
Package：Box

SKU:43f056cdd988 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

396-014-559-107 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 14POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 396-014-559-107

Description：CONN EDGE SGL FMALE 14POS 0.125
Series：396
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：14
Number of Positions：14
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.125" (3.18mm)
Read Out：Single
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Solder, Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 396-014-559-107

396-014-559-107

Edgeboard Connectors Overview

The EDAC Inc. part number 396-014-559-107 is a standard card edge connector from the 396 series, designed for vertical board-to-board or board-to-backplane connections. It features a single edge configuration with 14 positions and a pitch of 0.125 inches (3.18 mm). The connector supports a maximum PCB thickness of 1.57 mm and utilizes gold-plated contacts to ensure reliable signal transmission. Constructed with a thermoplastic polyester housing and copper alloy contacts, it provides robust mechanical stability. This component is rated for a current capacity of 3 A, making it suitable for various electronic interconnect applications requiring durable and precise mating.

Edgeboard Connectors Feature Summary

Vertical mounting orientation for secure board integration
Gold-plated contacts for enhanced conductivity and corrosion resistance
Thermoplastic polyester housing for structural integrity
Single edge design compatible with standard card edge PCBs

Edgeboard Connectors Applications

Medical interconnect solutions
Agricultural technology equipment
Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the exact part number against manufacturer specifications to ensure compatibility with your PCB design parameters. Confirm that the required PCB thickness does not exceed the specified limit of 1.57 mm. Check for RoHS compliance details through official distributor channels before finalizing procurement decisions. Ensure that the vertical mounting style aligns with your assembly requirements.

Edgeboard Connectors Selection Notes

Select this connector when a vertical, single-edge interface with 14 positions is required. The 3.18 mm pitch and 3 A current rating define its electrical suitability. Consider the gold plating for environments where contact reliability is critical. Verify housing material compatibility with your thermal and mechanical constraints.

Edgeboard Connectors Part Context

This component belongs to EDAC's 396 series of standard card edge connectors. The series offers various position counts and configurations tailored for diverse industrial and commercial applications. The 396-014-559-107 specifically addresses needs for moderate density connections with high durability.
