396-015-559-603

Edgeboard Connectors Overview

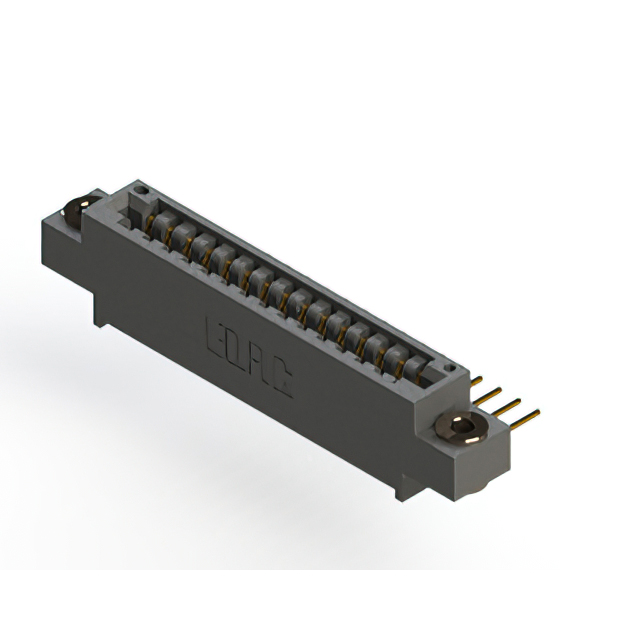

The EDAC Inc. 396-015-559-603 is a standard card edge connector designed for single-edge board applications. It features 15 positions with a 0.125-inch (3.18 mm) pitch. The connector utilizes female contacts with gold plating on the mating area, mounted on a copper alloy substrate. It employs a vertical mounting orientation and is constructed from thermoplastic polyester insulator material rated UL 94V-0. The unit is black in color and supports through-hole solder termination.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration for non-specified card types
• Gold-plated mating surfaces to ensure reliable electrical conductivity
• Vertical mounting design compatible with standard panel or board installations

Edgeboard Connectors Applications

• General electronic interconnect systems requiring single-edge board connections
• Industrial control modules utilizing standard card edge interfaces
• Communication equipment backplanes or daughterboard assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and flange specifications. Ensure compatibility with target PCB stack-up dimensions and hole patterns. Confirm RoHS compliance status matches current regulatory requirements for the intended market. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a single-edge female connector with a 0.125-inch pitch is required. Verify that the target card thickness falls within the connector's operational range. Ensure the vertical mounting style aligns with the mechanical assembly constraints. Confirm that the gold-plated contact material meets the environmental durability needs of the application.

Edgeboard Connectors Part Context

This component belongs to the EDAC 396 series of standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic interconnect needs. The 396-015-559-603 specifically addresses applications requiring a 15-position single-edge interface with robust gold-plated contacts for stable signal transmission.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct replacements. Verify pin count, pitch, and mounting orientation match exactly. Ensure mechanical dimensions and electrical ratings are compatible before integrating alternative part numbers into the design.
