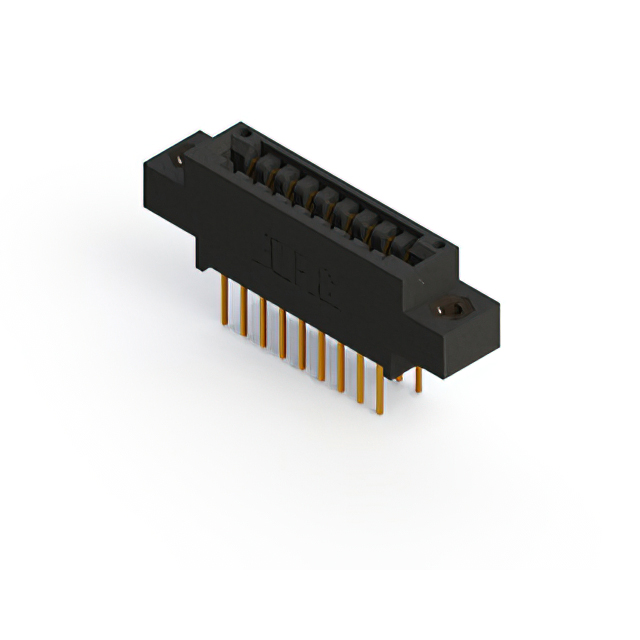

396-018-541-807 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 18POS 0.125. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 396-018-541-807
- Description：CONN EDGE DUAL FMALE 18POS 0.125
- Series：396
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：9
- Number of Positions：18
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.125" (3.18mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Top Mount Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 396-018-541-807
Edgeboard Connectors Overview
The EDAC Inc. part number 396-018-541-807 is a standard card edge connector belonging to the 396 series. It features an 18-position configuration with a 3.175 mm (0.125 inch) pitch. The connector is designed for dual-edge mating and utilizes gold-plated contacts. It supports a board thickness of 1.57 mm and is configured for vertical installation.
Edgeboard Connectors Feature Summary
- Dual-edge female contact design for secure board insertion
- Gold-plated contacts ensure reliable signal transmission
- Vertical mounting orientation for panel or chassis integration
Edgeboard Connectors Applications
- General electronic circuit board interconnections
- Industrial control system modules
- Communication equipment backplanes
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the official EDAC datasheet to confirm exact pin count, plating specification, and mounting style. Ensure compatibility with the target PCB edge thickness and slot dimensions before procurement. Cross-reference the manufacturer part number directly with authorized distributors to avoid counterfeit components.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge card edge connector with 18 positions and a 3.175 mm pitch is required. The vertical mounting style suits applications where space constraints favor perpendicular board insertion. Gold plating is suitable for general-purpose signal integrity needs without specialized high-current requirements.
Edgeboard Connectors Part Context
This component is part of the EDAC 396 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic assembly needs. EDAC manufactures these connectors to provide reliable interconnection solutions across multiple industrial and commercial sectors.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC cross-reference documentation for verified substitute part numbers. Do not assume mechanical or electrical interchangeability with generic competitors without verifying dimensional drawings and contact specifications.
