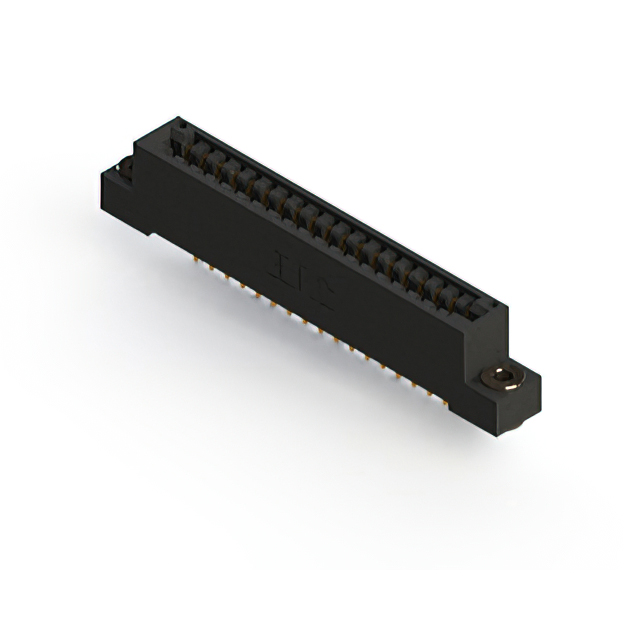

396-019-541-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 19POS 0.125. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 396-019-541-103
- Description：CONN EDGE SGL FMALE 19POS 0.125
- Series：396
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：19
- Number of Positions：19
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.125" (3.18mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 396-019-541-103
Edgeboard Connectors Overview
The EDAC Inc. 396-019-541-103 is a single-row card edge connector designed for vertical through-hole mounting. It features 19 positions with a 0.125-inch (3.18mm) pitch and gold-plated contacts. The connector supports board thicknesses of 1.57 mm and operates within a temperature range of -40°C to 105°C.
Edgeboard Connectors Feature Summary
- Single-sided female contact configuration for standard card edge applications
- Vertical termination style utilizing solder joint connections
- Gold-plated contact surfaces ensuring reliable signal transmission
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Medical equipment internal circuit board connections
- Automotive electronics modules
- Telecommunications infrastructure hardware
Edgeboard Connectors Procurement Notes
Verify the specific part number against manufacturer datasheets to confirm compatibility with target PCB stack-up dimensions. Ensure that the selected connector meets all required environmental certifications, such as RoHS compliance, for the intended deployment region. Cross-reference lead times with authorized distributors to align with production schedules effectively.
Edgeboard Connectors Selection Notes
Select this component when a single-row, vertical interface is required for boards with a thickness of 1.57 mm. The 0.125-inch pitch accommodates standard trace widths while maintaining high density. Consider the operating temperature range and material specifications to ensure long-term reliability in the specific application environment.
Edgeboard Connectors Part Context
This component belongs to the EDAC 396 series, which offers a comprehensive range of card edge connectors. The series is engineered for diverse industries including medical, industrial, and telecommunications. The 396-019 variant specifically addresses needs for moderate pin counts with reliable vertical mating capabilities.
Edgeboard Connectors Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical fit and electrical specifications before considering alternative sources.
