396-022-526-678

Edgeboard Connectors Overview

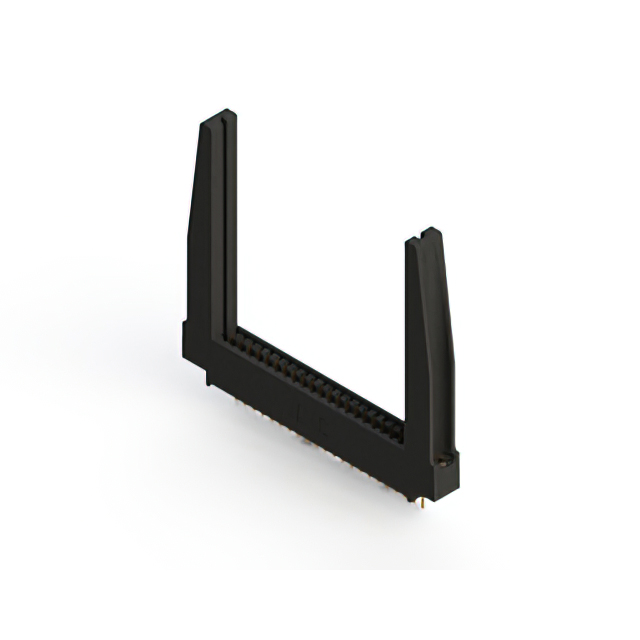

The EDAC Inc. model 396-022-526-678 is a standard card edge connector designed for vertical PCB mounting. It features 22 positions with a 3.175 mm (0.125 inch) pitch and accepts board thicknesses of 1.57 mm. The connector utilizes gold-plated contacts and is housed in a black insulator.

Edgeboard Connectors Feature Summary

• Vertical mounting configuration for direct printed circuit board integration
• Gold contact plating to ensure reliable signal transmission
• Single-edge design compatible with specified board thickness

Edgeboard Connectors Applications

• Electronic module interconnection
• Industrial control system interfaces
• Telecommunications hardware assembly

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official manufacturer documentation to confirm exact pin count, contact material, and insulation color. Ensure compatibility with target PCB dimensions and verify RoHS compliance status prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a single-edge vertical connector with 22 positions is required. Confirm that the target application supports the 3.175 mm pitch and 1.57 mm board thickness specifications. Validate that the gold contact finish meets the environmental requirements for the intended operating conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 396 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic applications. This specific model represents a single-edge variant within the broader product line.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Cross-reference pin counts, pitch, and mechanical dimensions before considering any substitute components.
