396-024-558-204

Edgeboard Connectors Overview

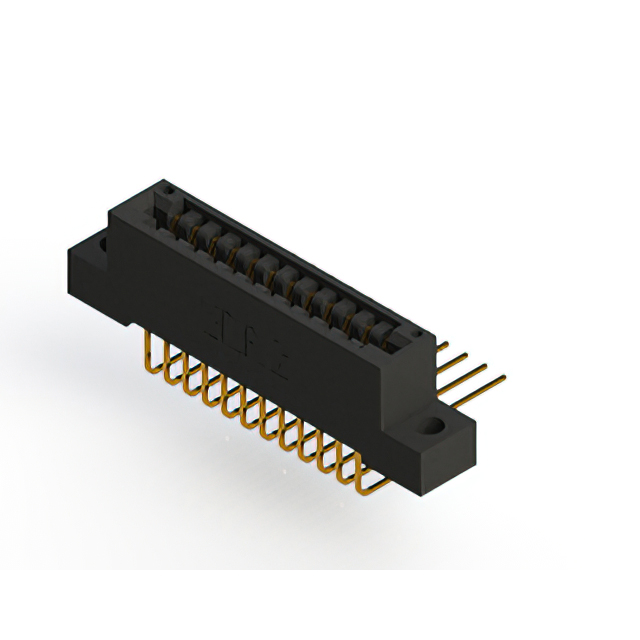

The EDAC Inc. part number 396-024-558-204 is a standard card edge connector belonging to the 396 series. It features 24 positions with a contact spacing of 3.175 mm (0.125 inches) and a row spacing of 6.35 mm (0.250 inches). Designed for vertical mounting, this dual-edge female connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). The contacts are gold-plated, and the insulator body is black.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Vertical mounting orientation for PCB integration
• Gold-plated contacts for reliable signal transmission
• High-profile insulator body construction

Edgeboard Connectors Applications

• Standard card edge interconnects
• Electronics assembly requiring vertical board connection
• Industrial control modules
• Communication equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility. Ensure that the required contact spacing, board thickness tolerance, and mounting orientation align with the design specifications. Cross-reference the datasheet for environmental ratings and compliance details before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 24 positions is required. Confirm that the application utilizes a 1.57 mm thick PCB and requires vertical mounting. Verify that the 3.175 mm pitch matches the card edge layout. Consider the gold plating for conductivity needs and the high-profile body for spatial constraints.

Edgeboard Connectors Part Context

This connector is part of the EDAC 396 series, which offers various configurations for card edge applications. The series provides options for different position counts and mounting styles. This specific model represents a dual-edge variant designed for robust vertical connections in electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Generic equivalents may not match the precise dimensional tolerances or contact specifications required for this specific connector type.
