396-026-558-158

Edgeboard Connectors Overview

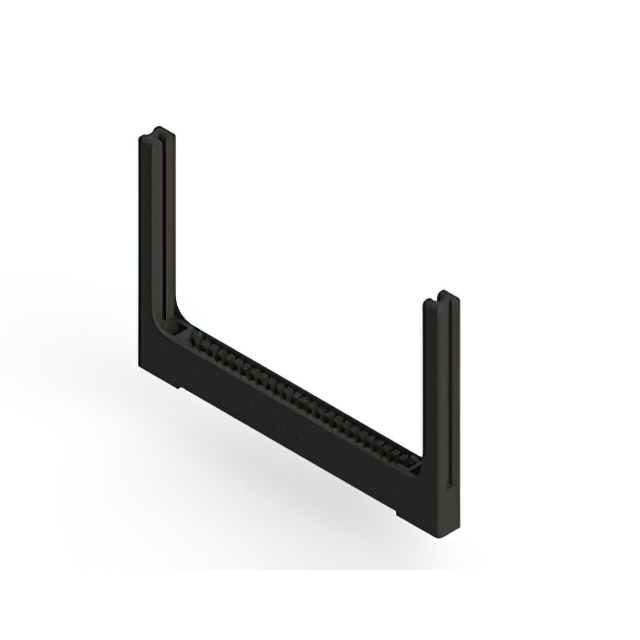

The EDAC Inc. model 396-026-558-158 is a standard card edge connector featuring 26 positions with a 3.175 mm pitch. It utilizes gold-plated contacts and supports a board thickness of 1.57 mm. The component employs a right-angle mounting orientation and wire wrap termination method, rated for a maximum current of 3A.

Edgeboard Connectors Feature Summary

• Right-angle body orientation
• Wire wrap termination method
• Gold contact plating

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology applications
• Industrial equipment connections

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version to confirm compliance with RoHS standards and exact physical dimensions. Ensure that the wire wrap termination requirement aligns with the assembly process capabilities. Confirm availability status through authorized distributors as supply conditions may vary by region.

Edgeboard Connectors Selection Notes

Select this connector when a right-angle configuration is required for single-edge board insertion. The wire wrap termination necessitates compatible wiring infrastructure. Verify that the 3A current rating meets the circuit requirements and that the 1.57 mm board thickness specification matches the design constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 396 series of standard card edge connectors. The series provides reliable interconnection solutions designed for various industrial and specialized environments. The manufacturer offers comprehensive support materials including ECAD models and dimensional drawings for integration.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include part numbers within the same EDAC 396 series family, such as 396-020-520-202 or 396-028-541-212, provided they match the position count and termination style.
