396-031-558-104

Edgeboard Connectors Overview

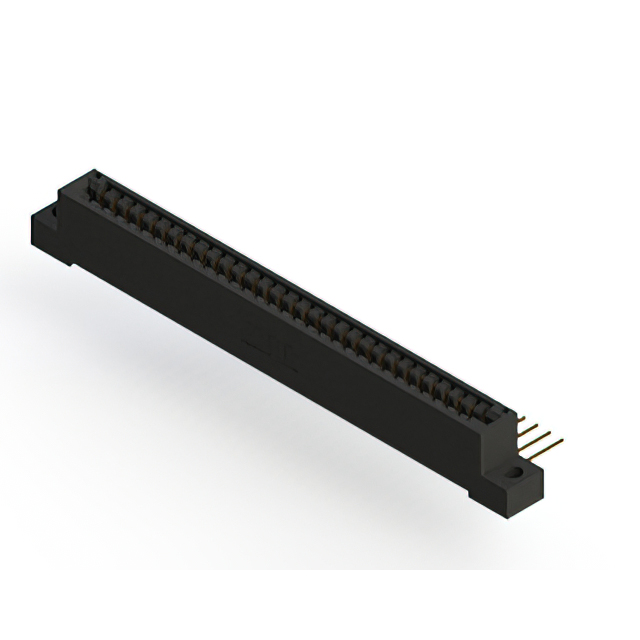

The EDAC Inc. 396-031-558-104 is a standard card edge connector designed for high-reliability applications. It features 31 positions with a female contact type and a 0.125-inch (3.175mm) pitch. The connector utilizes gold-plated contacts on a black thermoplastic insulator body. It supports single-edge board insertion with a nominal thickness of 0.062 inches (1.57mm). The unit employs a vertical mounting orientation and includes flanges for secure installation.

Edgeboard Connectors Feature Summary

• High-profile insulator body construction
• Gold-plated contact surfaces
• Vertical mounting configuration

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Automotive electronics

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm exact mechanical dimensions and plating specifications. Ensure compatibility with the target printed circuit board thickness and row spacing requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-edge connection with a 0.125-inch pitch is required. The vertical profile and flange design provide stability for boards with a nominal 0.062-inch thickness in constrained spaces.

Edgeboard Connectors Part Context

This part belongs to the EDAC 396 series, which offers various position counts and configurations. It serves as a specialized interconnect solution within the broader family of standard card edge connectors manufactured by EDAC Inc.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 396 series variants or equivalent industry-standard connectors that match the 31-position count, 0.125-inch pitch, and vertical mounting style.
