396-032-520-201

Edgeboard Connectors Overview

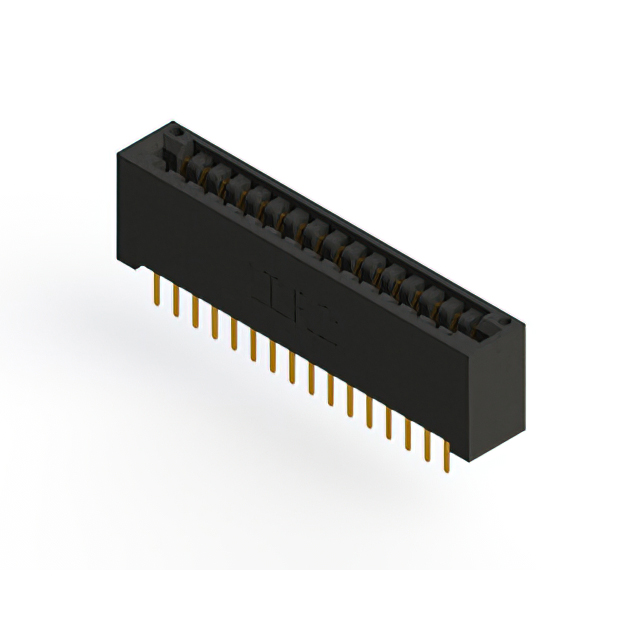

The EDAC Inc. 396-032-520-201 is a dual-edge female card edge connector designed for secure PCB interconnection. It features 32 positions with gold-plated contacts to ensure reliable signal transmission. The connector supports a board thickness of 0.125 inches (3.18mm) and utilizes copper alloy contact materials. Operating within a temperature range of -40°C to +105°C, this component provides robust performance in standard electronic assemblies requiring dual-row connectivity.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Supports 0.125-inch thick circuit boards
• Rated for operation up to +105°C

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules
• General-purpose electronic assembly connections

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm pin count and termination style. Ensure compatibility with the target PCB edge thickness of 0.125 inches. Check for any required mating accessories or mounting hardware specified in the manufacturer's datasheet before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row interface is required for thicker circuit boards. Consider the gold plating for environments where oxidation resistance is critical. Evaluate the operating temperature range against the application's thermal profile. Confirm that the 32-position capacity aligns with the signal routing requirements of the design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 396 series of edgeboard connectors, which are engineered for high-reliability applications. The series offers various row configurations and termination options to suit different PCB designs. The 396-032-520-201 specifically addresses needs for dual-edge female connections with standardized dimensions.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC part numbers sharing the same series prefix and position count. Verify mechanical dimensions and electrical ratings match exactly. Consult official substitution guides for compatible alternatives with identical form factors.
