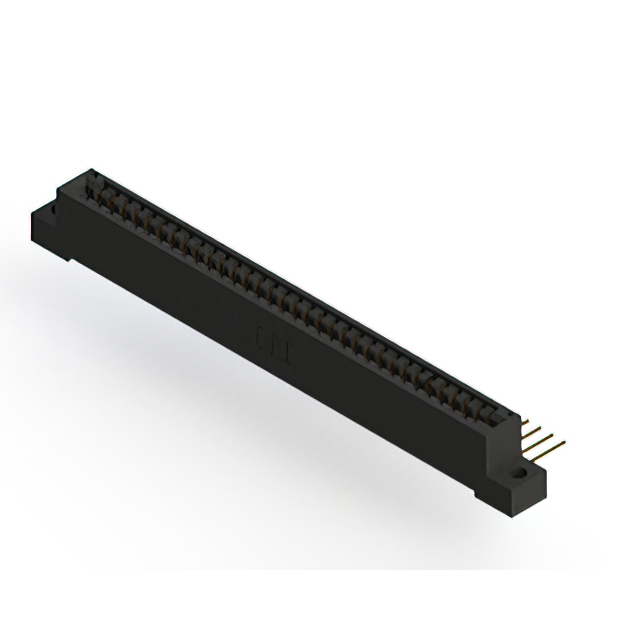

396-033-558-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 33POS 0.125. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 396-033-558-104
- Description：CONN EDGE SGL FMALE 33POS 0.125
- Series：396
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：33
- Number of Positions：33
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.125" (3.18mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder, Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 396-033-558-104
Edgeboard Connectors Overview
The EDAC Inc. 396-033-558-104 is a standard single-edge card edge connector featuring 33 positions with a 3.175 mm (0.125 inch) pitch. Designed for vertical mounting, it accommodates PCBs with a thickness of 1.57 mm. The contacts are gold-plated to ensure reliable signal transmission in demanding environments. This component belongs to the 396 series and is constructed with a black housing.
Edgeboard Connectors Feature Summary
- Single-edge female connector design for secure board insertion
- Vertical mounting orientation for space-efficient assembly
- Gold-plated contacts for enhanced conductivity and corrosion resistance
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Medical equipment needing reliable signal pathways
- Agricultural technology hardware exposed to harsh conditions
Edgeboard Connectors Procurement Notes
Verify specific regional availability as distribution status may vary by location. Confirm that the ordering suffix corresponds exactly to the required pin count and pitch specifications. Ensure compatibility with existing PCB layout dimensions before finalizing procurement orders to avoid integration issues.
Edgeboard Connectors Selection Notes
Select this model when a single-edge interface with 33 channels is required. Verify that the target printed circuit board supports the specified 1.57 mm thickness constraint. Ensure the application environment does not exceed the thermal ratings defined in the official datasheet for continuous operation.
Edgeboard Connectors Part Context
This component is part of the EDAC 396 series, which provides standard card edge connectors for various industrial applications. The series offers multiple position counts and configurations to support diverse electronic system requirements across communication, consumer electronics, and energy sectors.
Edgeboard Connectors Replacement Considerations
Compatible substitutes within the same series include models such as 396-020-520-202 or 396-033-558-112, provided they match the required position count and physical dimensions.
