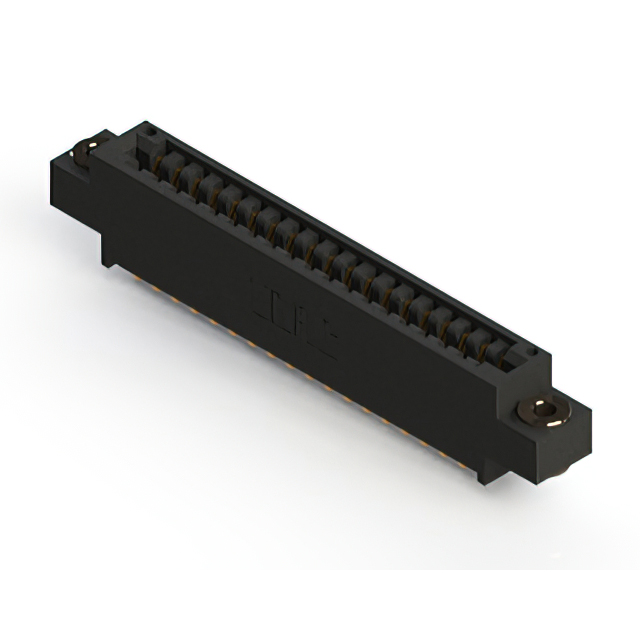

396-038-556-803 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 38POS 0.125. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 396-038-556-803
- Description：CONN EDGE DUAL FMALE 38POS 0.125
- Series：396
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：19
- Number of Positions：38
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.125" (3.18mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 396-038-556-803
Edgeboard Connectors Overview
The EDAC Inc. model 396-038-556-803 is a standard card edge connector belonging to the 396 series. It features 38 positions arranged in a double-row configuration with a pitch of 0.125 inches (3.18 mm). The insulator material is black, and the contacts are gold-plated. Designed for vertical installation, this component supports board thicknesses within the specified range for the series.
Edgeboard Connectors Feature Summary
- Double-row contact termination for increased density
- Gold-plated contacts for reliable signal transmission
- Vertical mounting orientation for PCB integration
Edgeboard Connectors Applications
- General electronic interconnect systems
- Industrial control modules
- Communication equipment backplanes
Edgeboard Connectors Procurement Notes
Verify the complete part number including all suffixes to ensure correct pin count, row configuration, and termination style. Confirm that the target printed circuit board thickness falls within the operational limits defined by the manufacturer specifications. Check for any specific environmental ratings or RoHS compliance requirements relevant to the deployment environment before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this connector when a double-row interface with a 3.18 mm pitch is required. Ensure the design accommodates the vertical mounting profile and the specific board thickness constraints associated with the 396 series. Verify that the gold plating meets the conductivity needs of the application.
Edgeboard Connectors Part Context
This component is part of the EDAC 396 series of standard card edge connectors. The series offers various position counts and configurations to support diverse electronic assembly needs. The 396 series is characterized by its robust construction and standardized dimensions suitable for widespread industrial adoption.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 396 series variants such as 396-036-556-803 or 396-040-556-803 if different pin counts are acceptable. Verify mechanical compatibility and electrical specifications before substituting.
