396-044-526-858

Edgeboard Connectors Overview

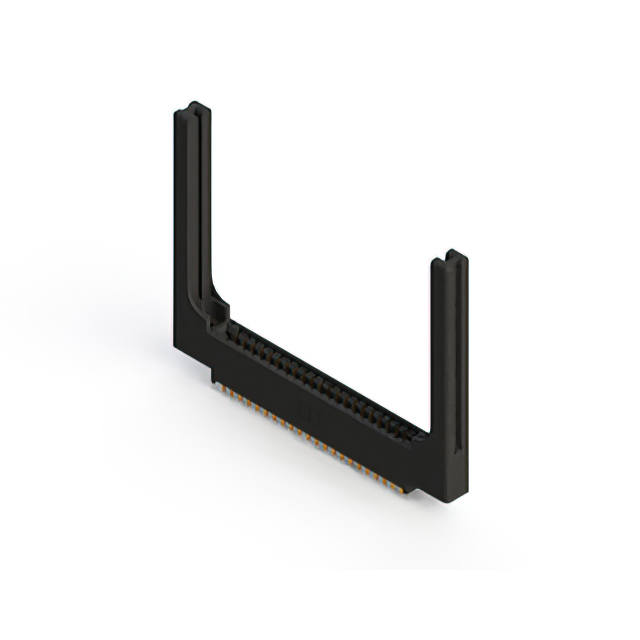

The EDAC Inc. part number 396-044-526-858 is a standard card edge connector from the 396 series, designed for dual-edge board insertion. It features 44 positions with a contact spacing of 0.125 inches (3.18 mm). The connector utilizes female contacts with gold plating and is housed in a black thermoplastic polyester insulator. It supports PCB thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm) and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board retention
• Gold-plated contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment internal circuitry connections
• Agricultural technology harsh environment applications

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer datasheet for the 396-044-526-858 to confirm current RoHS compliance status and REACH restrictions. Ensure that the ordering suffix matches the required flange characteristics and termination style. Cross-reference the official EDAC documentation against distributor listings to validate lead times and availability constraints before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 44 positions and 3.18 mm pitch is required. Confirm compatibility with the target PCB thickness range of 1.37 mm to 1.78 mm. Verify that the operating temperature requirements fall within the specified -40°C to +105°C range. Ensure the application does not require vertical mounting or single-edge configurations.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 396 series, which offers a comprehensive range of standard card edge solutions. The series is engineered for durability in demanding environments, including medical and agricultural sectors. The 396-044-526-858 variant specifically addresses high-density connection needs with its 44-position layout and standardized 0.125-inch spacing.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 396-042-526-858 (42 positions) and 396-086-521-212 (86 positions). Verify pin count and physical dimensions match the existing design constraints before substitution.
