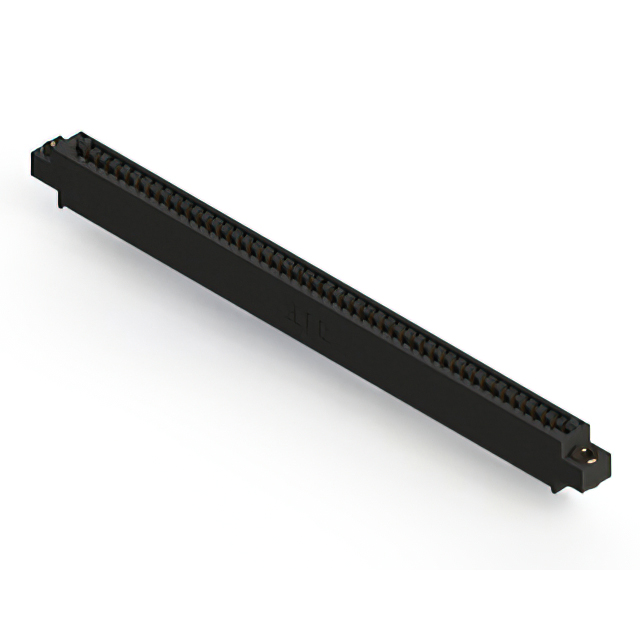

396-048-521-603

396-048-521-603 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 48POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 396-048-521-603

• Description：CONN EDGE SGL FMALE 48POS 0.125
• Series：396
• Mfr：EDAC Inc.
• Package：Box
• Card Type：Non Specified - Single Edge
• Gender：Female
• Number of Positions/Bay/Row：48
• Number of Positions：48
• Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
• Number of Rows：1
• Pitch：0.125" (3.18mm)
• Read Out：Single
• Features：-
• Mounting Type：Through Hole
• Termination：Solder
• Contact Material：Copper Alloy
• Contact Finish：Gold
• Contact Finish Thickness：10.0µin (0.25µm)
• Contact Type：Cantilever
• Color：Black
• Flange Feature：Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
• Operating Temperature：-40°C ~ 105°C
