Edgeboard Connectors Overview

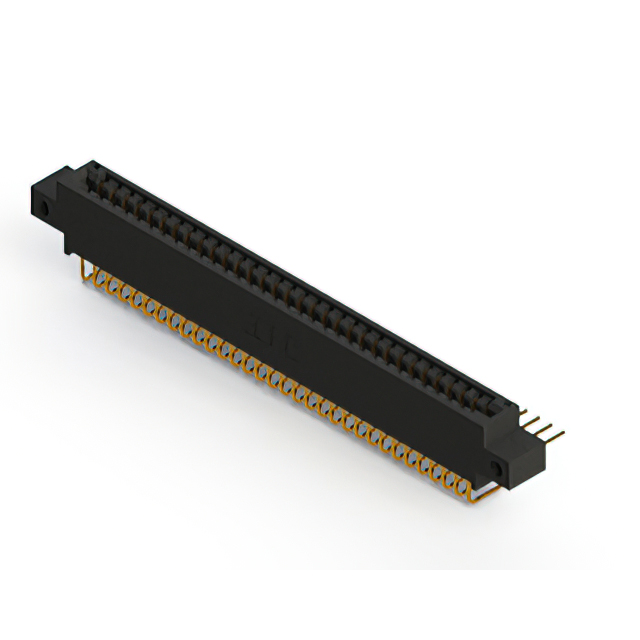

The EDAC Inc. 396-064-559-812 is a standard card edge connector designed for dual-sided edge board applications. It features 64 positions with a 0.125-inch (3.175 mm) pitch and accepts board thicknesses of 1.57 mm. The connector utilizes gold-plated contacts and is available in a right-angle mounting configuration.

Edgeboard Connectors Feature Summary

• Dual female contact design for reliable connection to double-sided edge boards
• Gold-plated contact surfaces ensure stable electrical performance
• Right-angle mounting orientation facilitates specific PCB layout requirements

Edgeboard Connectors Applications

• Double-sided printed circuit board interconnections
• Industrial control system backplanes
• Telecommunications equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the exact suffix against official EDAC documentation to confirm right-angle orientation and flange specifications. Ensure compatibility with target board thickness and pitch requirements before procurement. Cross-reference RoHS compliance status with current manufacturer declarations.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, dual-sided card edge interface is required. Confirm that the 0.125-inch pitch aligns with the PCB footprint. Validate mechanical clearance for the right-angle profile within the assembly enclosure.

Edgeboard Connectors Part Context

This part belongs to the EDAC 396 series of standard card edge connectors. The series offers various position counts and mounting angles to support diverse electronic assembly needs. The 396-064 variant specifically addresses high-density interconnection requirements.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Generic equivalents may not match the precise right-angle geometry or contact plating specifications.
